Audio System: Troubleshooting
| Symptom | Suspected area | Repairment |
|---|---|---|
| Pressing power switch does not turn on system | Radio receiver power source circuit | R-2 |
| LCD module | R-1 | |
| Panel switch does not function | Steering pad switch circuit | R-3 |
| Audio H/U front pcb ass'y | R-1 | |
| Radio receiver power source circuit | R-1 | |
| No sound can be heard from speakers | Radio receiver power source circuit | R-1 |
| Speaker ↔ H/U wiring | R-4 | |
| Speaker input Waveform | R-5 | |
| Noise occurs | Proceed to "noise occurs" | R-7 |
| Radio broadcast cannot be received | Proceed to "radio broadcast cannot be received (poor reception)" | R-6 |
| Disc cannot be inserted or is ejected right after insertion | Radio receiver power source circuit | R-1 |
| Proceed to "Disc cannot be inserted or is ejected right after insertion" | R-12 | |
| Disc cannot be ejected. | Radio receiver power source circuit | R-1 |
| CD sound skips | CD player | R-13 |
| Illumination for radio receiver does not come on with light control switch on. | Illumination circuit | R-8 |
| Head unit display | R-8 | |
| Radio receiver power source circuit | R-1 | |
| Display does not dim with light control switch turned on | Illumination circuit | R-9 |
| Power does not turn off | Audio H/U | R-1 |
| Bluetooth voice recognition faulty | Audio H/U | R-1 |
| Mic input | R-10 | |
| USB I/F error | Audio H/U | R-1 |
| USB device faulty | R-11 | |
| Multimedia terminal connection | R-10 | |
| iPod I/F error | Audio H/U | R-1 |
| Ipod faulty | R-11 | |
| Multimedia terminal connection | R-10 | |
| AUX connection error | Audio H/U | R-1 |
| Multimedia terminal connection | R-10 |
- R-1: Replace the audio head unit
- Check the same problems after replacing the audio head unit
OK
- If Audio is normal operating, replace the audio head unit
NG
- Check the vehicle wiring. (Refer to removal procedure. R-2)
- Check the same problems after replacing the audio head unit
- R-2: Check the power connection of audio head unit.
- R-3: Check the steering wheel remote control
- Check the steering wheel remote control connector specification (Refer to "
INSPECTION ")
OK
- Replace the audio head unit. (Refer to R-1)
NG
- Replace the steering wheel remote control switch.
- Check the steering wheel remote control connector specification (Refer to "
INSPECTION ")
- R-4: Check the wiring harness and connector
- Remove the audio head unit
OK
- FOR PA-710S
Courtesy of HYUNDAI MOTOR AMERICA

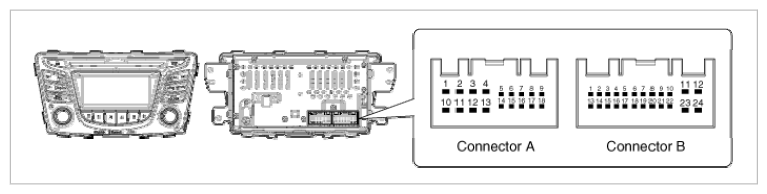

Tester Connection Condition Specified Condition CON-A1 ↔ RL SPK + Always Below 1Ω CON-A10 ↔RL SPK - Always Below 1Ω CON-A2 ↔ FL SPK + Always Below 1Ω CON-A11 ↔ FL SPK - Always Below 1Ω CONA3 ↔ FR SPK + Always Below 1Ω CON-A12 ↔ FR SPK - Always Below 1Ω CON-A4 ↔ RR SPK + Always Below 1Ω CON-A13 ↔ RR SPK - Always Below 1Ω CON-A1, 2, 3, 4, 10, 11, 12, 13 ↔ GND Always OPEN
- FOR PA-710S
- Remove the audio head unit
- R-5: Check the wiring harness and connector
- Remove the audio head unit
- Check the output of audio head unit using the oscilloscope
OK
- FOR PA-710RB
Courtesy of HYUNDAI MOTOR AMERICA
Tester Connection Condition Specified Condition CON-A1 ↔ GND Audio sound is being produced A waveform synchronized with sound is output CON-A10 ↔ GND Audio sound is being produced A waveform synchronized with sound is output CON-A2 ↔ GND Audio sound is being produced A waveform synchronized with sound is output CON-A11 ↔ GND Audio sound is being produced A waveform synchronized with sound is output CON-A3 ↔ GND Audio sound is being produced A waveform synchronized with sound is output CON-A12 ↔ GND Audio sound is being produced A waveform synchronized with sound is output CON-A4 ↔ GND Audio sound is being produced A waveform synchronized with sound is output CON-A13 ↔ GND Audio sound is being produced A waveform synchronized with sound is output
- FOR PA-710RB
- R-6: Radio Broadcast cannot be Received (Bad reception)
- Check the radio broadcast reception after replacing the audio head unit
OK
- If Audio is normal operating, replace the audio head unit
NG
- Go to step 2
- Check the antenna jack
NG
- Check again the radio broadcast reception after connecting the antenna jack
OK
- Go to step 3
- Check the antenna amp input voltage (Refer to
"Antenna - Glass antenna circuit inspection"
NG
- Check the antenna amp input voltage (Refer to " ANTENNA CABLE "
OK
- Go to step 4
- Check the feeder cable connection (Refer to "
ANTENNA CABLE ")
NG
- Check again after repairing or replacing the antenna feeder cable.
OK
- Go to step 5
- Check and repair the glass antenna. (Refer to "Antenna - Glass antenna test")
- Check the radio broadcast reception after replacing the audio head unit
- R-7: Check that speakers are installed tightly.
NG
- Install the speakers tightly.
OK
- Go to step 1
- Noise source description
Condition in Which Noise Occurs Noise Type Depressing accelerator pedal increases noise, and stopping engine stops noise immediately Generator noise When A/C or heater is operating Blower motor noise - When rapidly accelerating on unpaved road
- When engine switch is turned on (IG)
Fuel pump noise - When horn switch is pressed and released
- When horn switch is pressed and held down
Horn noise Running engine causes soft noise, and stopping engine stops noise immediately Ignition noise Noise occurs synchronously with turn signal flash Flasher noise Noise occurs during window washer operation Washer noise Running engine causes noise, but stopping engine does not stop noise Engine coolant temperature sensor noise When wiper is operating Wiper noise When brake pedal is depressed Stop light switch noise Other Static electricity on vehicle OK
- Check the noise source
NG
- Check again after replacing the audio head unit
- Repair or replace the noise source
- R-8: Check again after replacing the audio head unit
OK
- Remove the audio head unit
NG
- Go to step 1
- Check the input signal of Illumination (+)
FOR PA-710S
Tester Connection Condition Specified Condition CON-A8/H8 ↔ GND Always 9~16 V CON-C4 ↔ GND Always Below 1Ω NG
- Check the vehicle wiring
OK
- Go to step 2
- Check the illumination (-) input signal using the oscilloscope
FOR PA-710S
Tester Connection Condition Specified Condition CON-A17/H17 ↔ GND Always Check the PWM waveform NG
- Check the vehicle wiring and cluster PWM output.
OK
- Go to step 3
- Check the vehicle illumination control unit.
- R-9: Test after replacing the audio head unit
OK
- Replace the audio head unit
NG
- Go to step 1
- Check the illumination (-) input signal using the oscilloscope
FOR PA-710S
Tester Connection Condition Specified Condition CON-A17/H17 ↔ GND Always Check the PWM waveform Is PWM output waveform changed according to vehicle illumination control?
NG
- Check the vehicle wiring and cluster PWM output module.
OK
- Go to step 2
- Check the illumination detent input signal.
FOR PA-710S
Tester Connection Condition Specified Condition CON-A9 ↔ GND Always LOW: DETENT OFF NG
- Check the vehicle wiring and cluster DETENT output signal
OK
- Go to step 3
- Check the vehicle illumination control unit.
- R-10: Check the mic input condition.
Tester Connection Condition Specified Condition CON-B10/I10 ↔ MIC+ Always Below 1Ω CON-B22/I22 ↔ MIC- Always Below 1Ω CON-B22/I22↔ GND Always OPEN NG
- Check the vehicle wiring and B/T mic
OK
- Go to step 1
- Test again after replacing the B/T mic
- R-11: Test after replacing the audio head unit
OK
- Replace the audio head unit
NG
- Go to step 1
- Test after replacing the multimedia jack.
OK
- Replace the multimedia jack.
NG
- Go to step 2
- Check the multimedia jack connector.

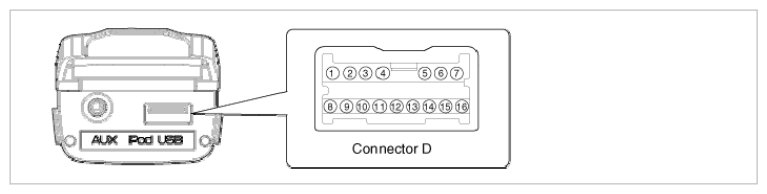

Tester Connection Condition Specified Condition CON-B6/I16 ↔ CON-D3 Always Below 1Ω CON-B18/I18 ↔ CON-D2 Always Below 1Ω CON-B7/I7 ↔ CON-D1 Always Below 1Ω CON-B8/I8 ↔ COND16 Always Below 1Ω CON-B9/I9 ↔ CON-D6 Always Below 1Ω CON-B20/I20 ↔ CON-D14 Always Below 1Ω CON-B21/I21 ↔ CON-D7 Always Below 1Ω CON-B/I 6, 18, 7, 8, 20, 21 ↔ GND Always OPEN NG
- Check the vehicle wiring
OK
- Go to step 3
- Check again after replacing the external input device with another one.
- R-12: Disc cannot be inserted or ejected right after insertion
- Is the ignition key at ACC or ON?
OK
- Go to step 2
NG
- Turn the key to ON
- Power ON reset. Disconnect the 2 audio fuses, wait 5 minutes with ignition switch off. Then insert both fuses. Then turn the ignition key ON. Is CD ejected?
OK
- Look for foreign matter in CD player such as paper labels, coins etc.
NG
- Go to step 3
- If CD does not eject, don't try removing it. The player may be damaged. Please replace the CD player.
- Is the ignition key at ACC or ON?
- R-13: Sound sometimes skips when parking
- Is CD face scratched or dirty?
OK
- CD is defective, or clean CD
NG
- Go to step 2
- Does it play properly if CD is replaced with an existing proper CD?
OK
- Replace CD
NG
- Repair or replace CD player
- Is CD face scratched or dirty?
