Repair procedures (F21): Removal

Remove the shift lever knob (A).

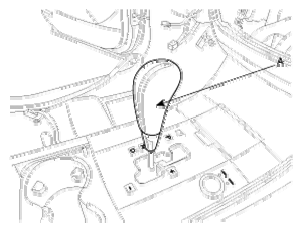

Fig 1: Identifying Shift Lever Knob
Courtesy of HYUNDAI MOTOR CO.
Remove the center console cover (A).

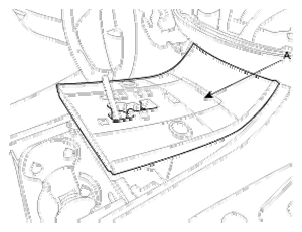

Fig 2: Identifying Center Console Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the center console. (Refer to CONSOLE .)
Remove the shift cable assembly (C) by removing the clamp (A) and the snap pin (B).

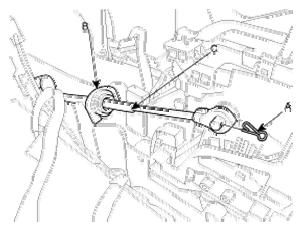

Fig 3: Identifying Clamp And Snap Pin
Courtesy of HYUNDAI MOTOR CO.
Disconnect the interlock switch connector (A).

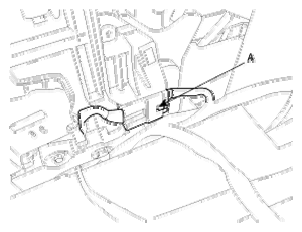

Fig 4: Identifying Interlock Switch Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the shift lever assembly (A).

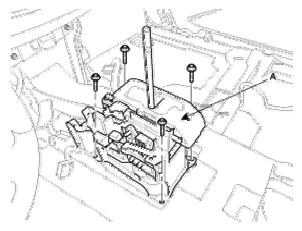

Fig 5: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the retainer (A) and nuts (B).

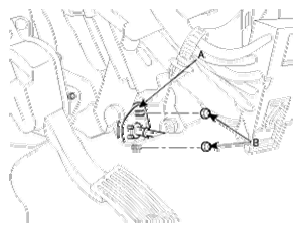

Fig 6: Identifying Retainer And Nuts
Courtesy of HYUNDAI MOTOR CO.

NOTE: In case, remove the crash pad and cowl cross bar. (Refer to CRASH PAD and HEATER UNIT .)
Remove the shift cable assembly from the transaxle. (Refer to REMOVAL .)
Remove the shift cable assembly.
