Repair procedures (F21): Adjustment

Adjusting The Shift Cable

1. Set the room side lever and the manual lever to "N" position.
2. Push the shift cable lightly to "F" direction shown in the illustration to eliminate the free play.

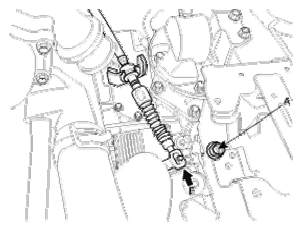

   Fig 1: Identifying Adjusting Nut

   Courtesy of HYUNDAI MOTOR CO.
3. Tighten the adjusting nut (A).

   Tightening torque :

   8-12Nm (0.8-1.2kgf.m, 5.8-8.7lb-ft)

4. Check that this part operates surely at each range of the manual lever corresponding to each position of the room lever.
