Home >> Hyundai >> 2011 >> Veracruz GLS, FWD >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Components and Components Location >> Components

Components and Components Location: Components

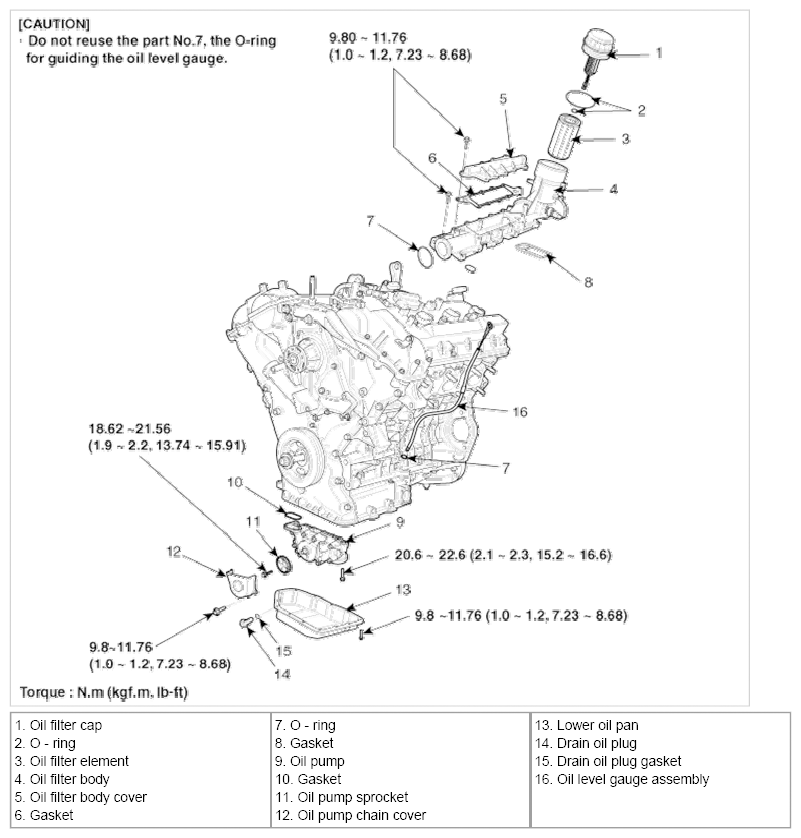

Fig 1: Lubrication System Replacement Components With Torque Specifications

G06856889

Courtesy of HYUNDAI MOTOR CO.
