Repair Procedures: Inspection

  1. Remove the fuse box cover.
  2. Remove the starter relay (A).

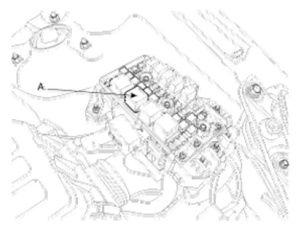

    Fig 1: Identifying Starter Relay
    G06857060Courtesy of HYUNDAI MOTOR CO.
  3. Using an ohmmeter, check that there is continuity between each terminal.
    CONTINUITY SPECIFICATION

    Terminal Continuity
    30 - 87 NO
    85 - 86 YES
  4. Apply 12 V to terminal 85 and ground to terminal 86.

    Check for continuity between terminals 30 and 87.

    Fig 2: Identifying Starter Relay Connector Terminals
    G06857061Courtesy of HYUNDAI MOTOR CO.
  5. If there is no continuity, replace the starter relay.
  6. Install the starter relay.
  7. Install the fuse box cover.
