Repair procedures: Reassembly

NOTE: Be careful not to get any grease or oil on the slip rings.

Insert the rotor (A) in the stator and front frame assembly (B).

Fig 1: Identifying Rotor
Courtesy of HYUNDAI MOTOR CO.
Install the washer (B) and the rear bracket assembly (A).

Fig 2: Identifying Rear Bracket Assembly
Courtesy of HYUNDAI MOTOR CO.
Tighten the four nuts and insulators (B).

Fig 3: Identifying Insulators Nuts
Courtesy of HYUNDAI MOTOR CO.

Fig 4: Identifying Insulators
Courtesy of HYUNDAI MOTOR CO.
Install the rectifier (B) and the rubber seal (C) by tightening the four screws (A).

Fig 5: Identifying Rectifier And Rubber Seal
Courtesy of HYUNDAI MOTOR CO.
Install the brush holder (A).

Fig 6: Identifying Brush Holder
Courtesy of HYUNDAI MOTOR CO.

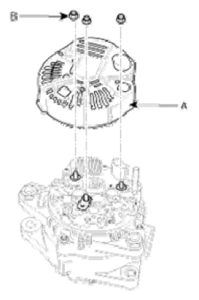

Install the generator cover (A) by tightening the three nuts (B).

Fig 7: Identifying Generator Cover
Courtesy of HYUNDAI MOTOR CO.
Install the pulley with a hexagonal wrench.
