Rear Power Window Switch

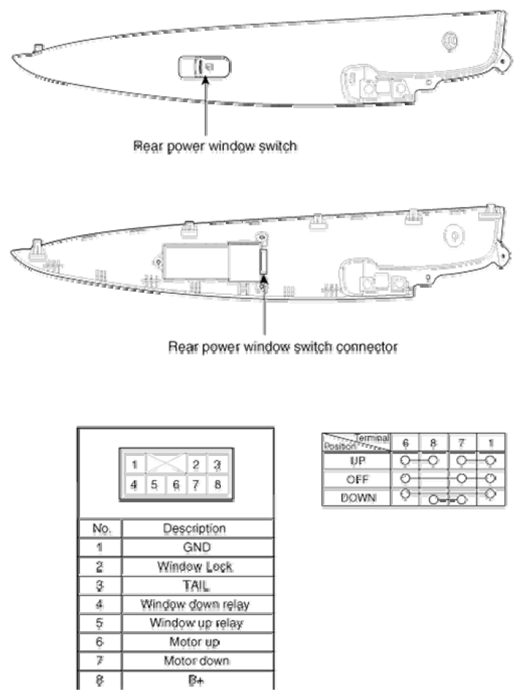

Fig 1: Identifying Rear Power Window Switch Components

G06858353

Courtesy of HYUNDAI MOTOR CO.
