Assist Power Window Switch

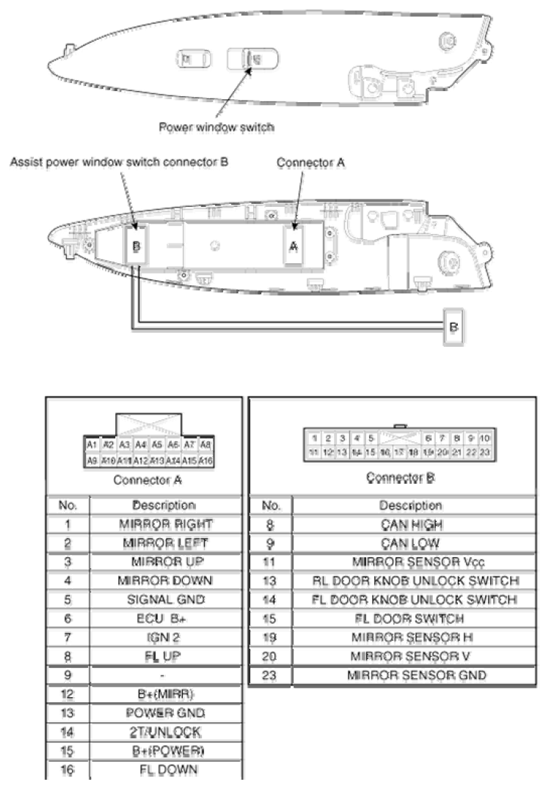

Fig 1: Identifying Assist Power Window Switch Components

G06858352

Courtesy of HYUNDAI MOTOR CO.
