Repair Procedures: Inspection

Fig 1: Identifying Ignition Switch Assembly
G06861817Courtesy of HYUNDAI MOTOR CO.
  1. Disconnect the ignition switch connector and key warning switch connector from under the steering column.
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

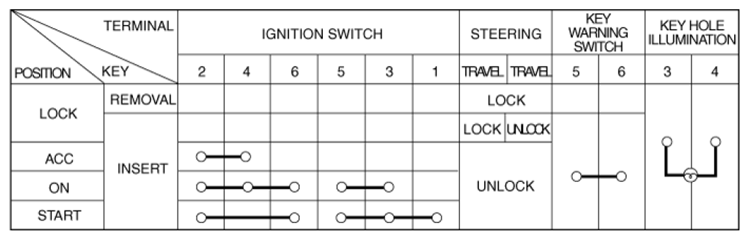

    Fig 2: Ignition Switch Assembly Continuity Table
    G06861818Courtesy of HYUNDAI MOTOR CO.
