Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

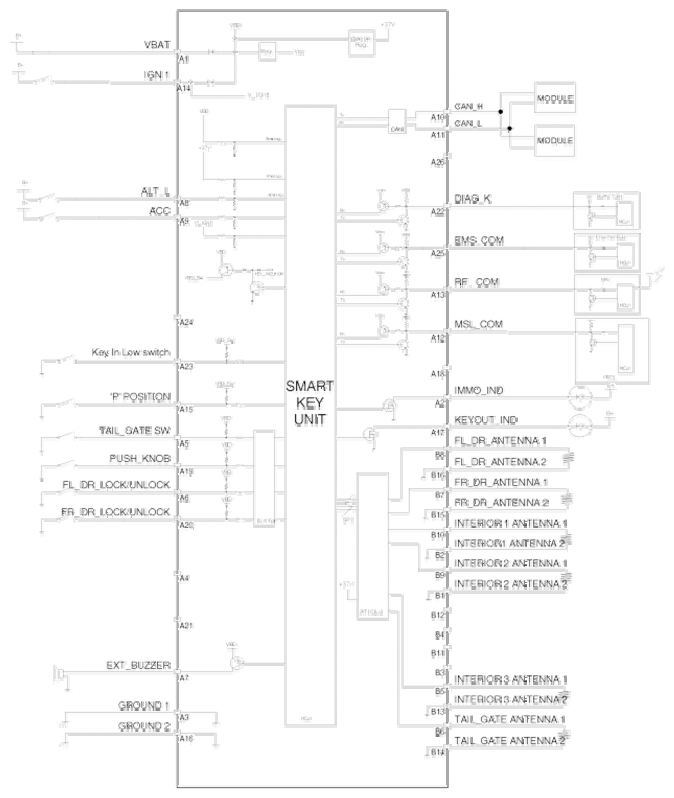

Fig 1: Smart Key Unit - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
