Interior 1 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the console under cover (A) and connectors (B).

    (Refer to CONSOLE )

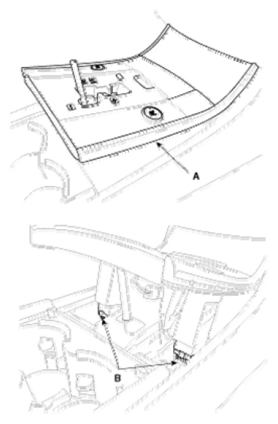

    Fig 1: Identifying Console Under Cover
    G06861695Courtesy of HYUNDAI MOTOR CO.
  3. After loosening the console mounting screws, remove the floor console assembly (A).

    (Refer to FLOOR CONSOLE REPLACEMENT )

    Fig 2: Identifying Floor Console Assembly
    G06861696Courtesy of HYUNDAI MOTOR CO.
  4. After loosening the antenna nuts (2EA) and connector, remove the interior 1 antenna (A).
    Fig 3: Identifying Antenna Nuts
    G06861697Courtesy of HYUNDAI MOTOR CO.
