Mechatronic Steering Lock (MSL)

  1. Check for continuity between the terminals of switch.
  2. If continuity is not specified, inspect the switch
    Fig 1: Identifying Mechatronic Steering Lock Connector Terminals
    G06861688Courtesy of HYUNDAI MOTOR CO.

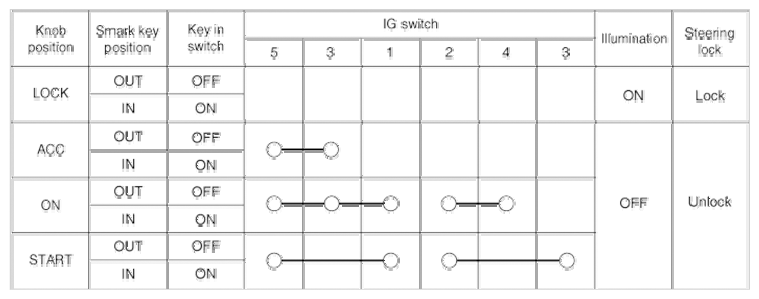

    Fig 2: Mechatronic Steering Lock Continuity Table
    G06861689Courtesy of HYUNDAI MOTOR CO.
