Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the seat front cover.

    (Refer to FRONT SEAT )

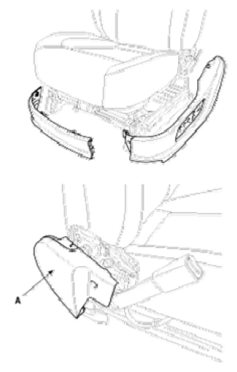

  3. After loosening the mounting screws and clip, then remove the recliner cover (A).
    Fig 1: Identifying Recliner Cover
    G06858224Courtesy of HYUNDAI MOTOR CO.
  4. Loosen the power seat control switch screws (3EA), then remove the connectors (2EA).
    Fig 2: Identifying Power Seat Control Switch Screws
    G06858225Courtesy of HYUNDAI MOTOR CO.
    Fig 3: Identifying Power Seat Control Switch
    G06858226Courtesy of HYUNDAI MOTOR CO.
