Repair Procedures: Inspection

  1. Remove the seat control switch.
    Fig 1: Identifying Seat Control Switch
    G06858222Courtesy of HYUNDAI MOTOR CO.
  2. With the power seat control switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat control switch.

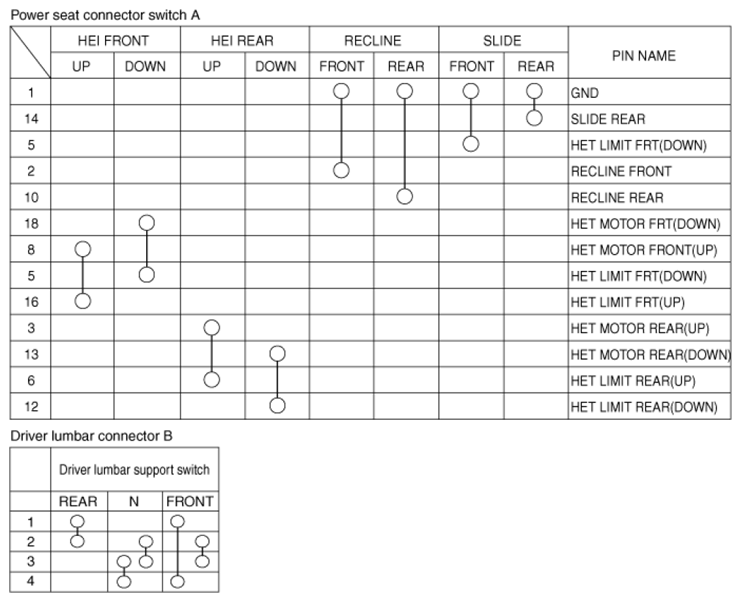

    Fig 2: Seat Control Switch Continuity Table
    G06858223Courtesy of HYUNDAI MOTOR CO.
