Repair Procedures (F21): Installation

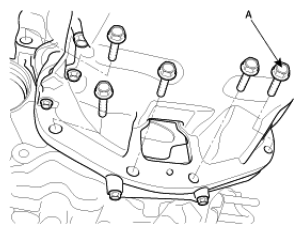

  1. After fitting the transaxle assembly into the engine assembly by using a jack, install the five transaxle lower mounting bolts (A).

    Tightening torque:

    40-47 N.m (4.0-4.7 kgf.m, 28.9-34.0 lb-ft)

    Fig 1: Identifying Transaxle Lower Mounting Bolts
    G06861490Courtesy of HYUNDAI MOTOR CO.
  2. Install the starter motor mounting bolt (A) and the transaxle mounting bolt (B).

    Tightening torque :

    [A]: 33-50 N.m (3.3-5.0 kgf.m, 23.9-36.1 lb-ft)

    [B]: 80-100 N.m (8-10 kgf.m, 57.9-72.3 lb-ft)

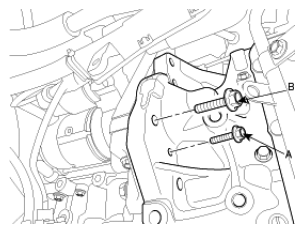

    Fig 2: Identifying Starter Motor Mounting Bolt
    G06861491Courtesy of HYUNDAI MOTOR CO.

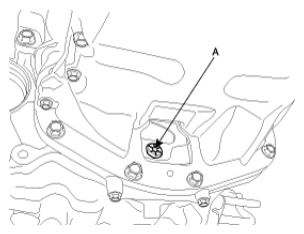

  3. Install the six drive plate mounting bolts (A) by rotating the timing gear.

    Tightening torque:

    46-53 N.m (4.6-5.3 kgf.m, 33.3 - 38.3 lb-ft)

    CAUTION: Be sure to tighten the bolts with the specified torque.
    Fig 3: Identifying Drive Plate Mounting Bolts
    G06861492Courtesy of HYUNDAI MOTOR CO.

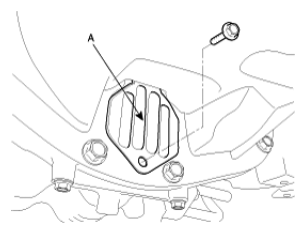

  4. Install the dust cover (A).
    Fig 4: Identifying Dust Cover
    G06861493Courtesy of HYUNDAI MOTOR CO.
  5. Install the transaxle mounting bolt near the driveshaft hole from engine side.

    Tightening torque:

    80-100 N.m (8-10 kgf.m, 57.9-72.3 lb-ft)

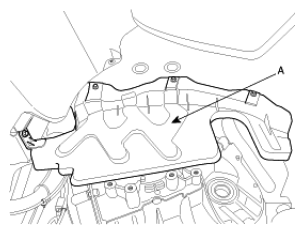

  6. Install the side mud cover (A).
    Fig 5: Identifying Side Mud Cover
    G06861494Courtesy of HYUNDAI MOTOR CO.

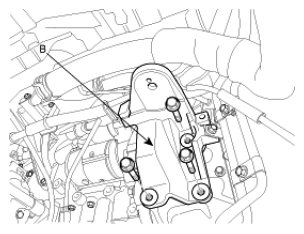

  7. After installing the front mounting bracket (B) by removing the three bolts, install the vacuum tube mounting bolt (A).
    Fig 6: Identifying Front Mounting Bracket
    G06861495Courtesy of HYUNDAI MOTOR CO.

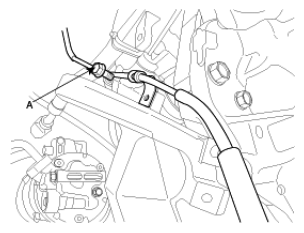

    Fig 7: Identifying Vacuum Tube Mounting Bolt
    G06861496Courtesy of HYUNDAI MOTOR CO.

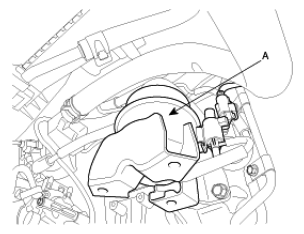

  8. After installing the front roll mounting bracket assembly (A), connect the vacuum tube and the connector.
    Fig 8: Identifying Front Roll Mounting Bracket Assembly
    G06861497Courtesy of HYUNDAI MOTOR CO.

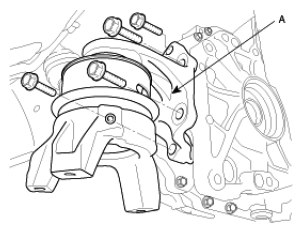

  9. Install the rear roll mounting bracket assembly (A) by installing the four bolts.
    Fig 9: Identifying Rear Roll Mounting Bracket Assembly
    G06861498Courtesy of HYUNDAI MOTOR CO.

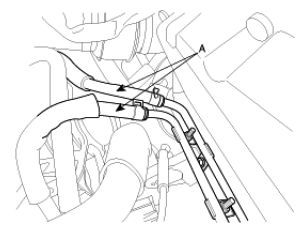

  10. Install the transaxle oil cooler hose (A).
    Fig 10: Identifying Transaxle Oil Cooler Hose
    G06861499Courtesy of HYUNDAI MOTOR CO.
  11. In case of 4WD, install the transfer case assembly. (refer to TRANSFER CASE )

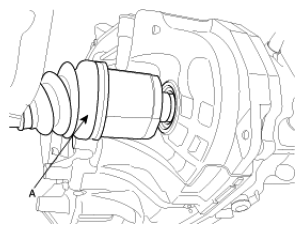

  12. Connect the left driveshaft (A) to the transaxle.
    Fig 11: Identifying Left Driveshaft
    G06861500Courtesy of HYUNDAI MOTOR CO.

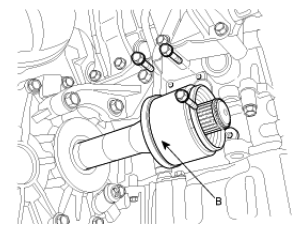

  13. Install the inner shaft (B) by installing the three mounting bolts and connect the right driveshaft (A) into the inner shaft.
    NOTE: In case of 2WD, install the inner shaft and the right driveshaft as an assembly.
    Fig 12: Identifying Inner Shaft
    G06861501Courtesy of HYUNDAI MOTOR CO.

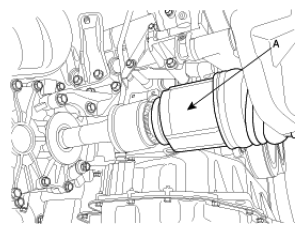

    Fig 13: Identifying Right Driveshaft
    G06861502Courtesy of HYUNDAI MOTOR CO.

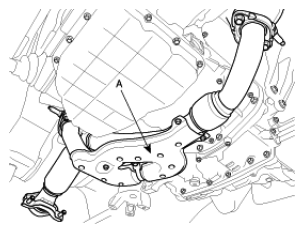

  14. Install the front muffler (A).
    Fig 14: Identifying Front Muffler
    G06861503Courtesy of HYUNDAI MOTOR CO.
  15. Support the subframe with a jack and the Special tool (09624-38000).
  16. Install the power steering pressure tube (A) to the power steering oil pump by installing the I-type bolt.
    Fig 15: Identifying Power Steering Pressure Tube
    G06861504Courtesy of HYUNDAI MOTOR CO.
  17. Install the mounting bolts. (refer to FRONT SUSPENSION SYSTEM )
  18. Install the roll stopper mounting bolts (A, B).

    Tightening torque:

    90-110 N.m (9-11 kgf.m, 65.1-79.5 lb-ft)

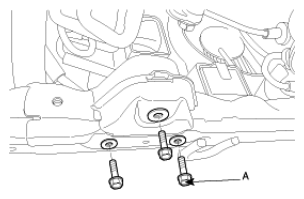

    Fig 16: Identifying Roll Stopper Mounting Bolts (1 Of 2)
    G06861505Courtesy of HYUNDAI MOTOR CO.

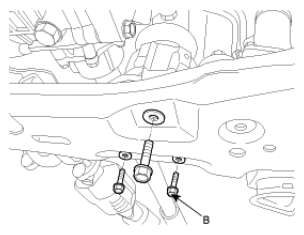

    Fig 17: Identifying Roll Stopper Mounting Bolts (2 Of 2)
    G06861506Courtesy of HYUNDAI MOTOR CO.
  19. Install the muffler hanger rubber (A).

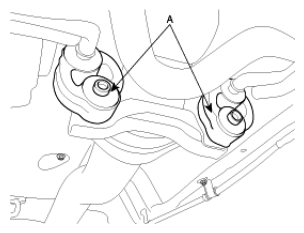

    Fig 18: Identifying Muffler Hanger Rubber
    G06861507Courtesy of HYUNDAI MOTOR CO.
  20. Install the lower arm ball joint mounting nut, the stabilizer link mounting nut, and the tie rod end mounting nut from the front knuckles. (refer to FRONT SUSPENSION SYSTEM )

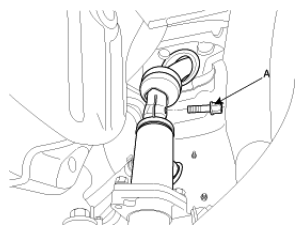

  21. Install the steering joint bolt (A).
    Fig 19: Identifying Steering Joint Bolt
    G06861508Courtesy of HYUNDAI MOTOR CO.
  22. Connect the return hose (A) to the tube by tightening the clamp.

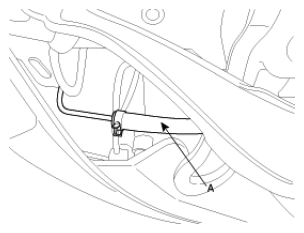

    Fig 20: Identifying Return Hose
    G06861509Courtesy of HYUNDAI MOTOR CO.

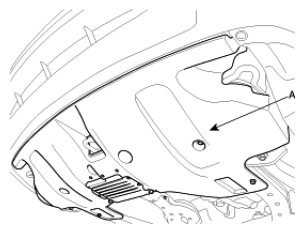

  23. Install the under shield cover (A).
    Fig 21: Identifying Under Shield Cover
    G06861510Courtesy of HYUNDAI MOTOR CO.
  24. Lower the vehicle.
  25. Install the front wheels and tires. (refer to TIRES/WHEELS )
  26. Connect the power steering pressure sensor (A).

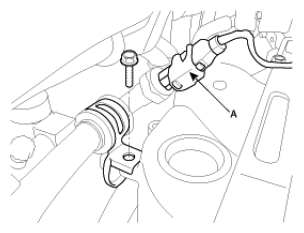

    Fig 22: Identifying Power Steering Pressure Sensor
    G06861511Courtesy of HYUNDAI MOTOR CO.

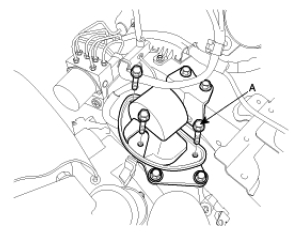

  27. Install the transaxle support bracket bolts (A).

    Tightening torque:

    90 - 110 N.m (9-11 kgf.m, 65.1 - 79.5 lb-ft)

    Fig 23: Identifying Transaxle Support Bracket Bolts
    G06861512Courtesy of HYUNDAI MOTOR CO.

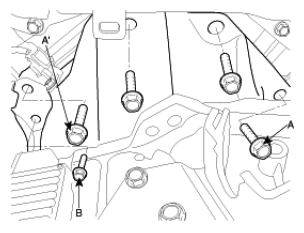

  28. Install the four transaxle upper mounting bolts (A) and the starter motor mounting bolt (B).

    Tightening torque:

    [A]: 65 - 85 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb-ft)

    [A']: 43 - 55 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)

    [B]: 43 - 55 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)

    Fig 24: Identifying Transaxle Upper Mounting Bolts
    G06861513Courtesy of HYUNDAI MOTOR CO.

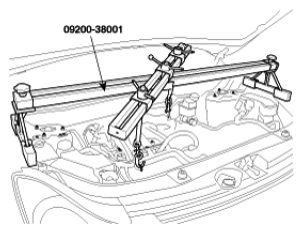

  29. Remove the special tool (09200-38001).
    Fig 25: Identifying Starter Motor Mounting Bolt
    G06861514Courtesy of HYUNDAI MOTOR CO.

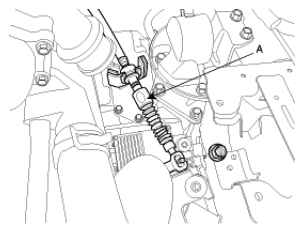

  30. Install the shift cable assembly (A).

    Tightening torque:

    8-12 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

    NOTE: Adjust the shift cable referring to Shift lever's Adjustment section.
    Fig 26: Identifying Shift Cable Assembly
    G06861515Courtesy of HYUNDAI MOTOR CO.
  31. Install the ground cable (A) to transaxle.

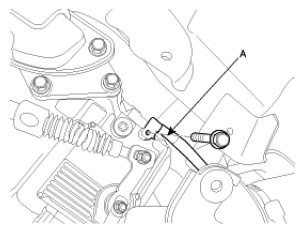

    Fig 27: Identifying Ground Cable
    G06861516Courtesy of HYUNDAI MOTOR CO.

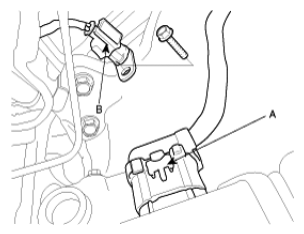

  32. Connect the TCU connector (A) and install the CKP sensor (B).
    Fig 28: Identifying TCU Connector
    G06861517Courtesy of HYUNDAI MOTOR CO.

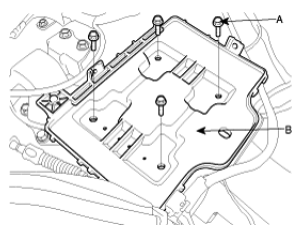

  33. Install the battery tray (B) by Installing the four bolts (A).
    Fig 29: Identifying Battery Tray
    G06861518Courtesy of HYUNDAI MOTOR CO.
  34. Installing the air cleaner assembly (C) by connecting the AFS (Air Flow Sensor) connector (A) and tightening the clamp (B).

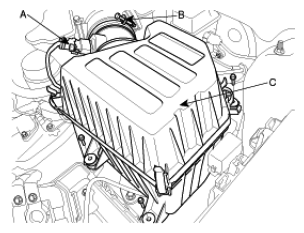

    Fig 30: Identifying Air Flow Sensor Connector
    G06861519Courtesy of HYUNDAI MOTOR CO.

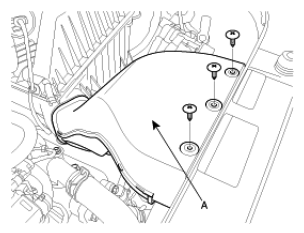

  35. Install the air duct (A).
    Fig 31: Identifying Air Duct
    G06861520Courtesy of HYUNDAI MOTOR CO.

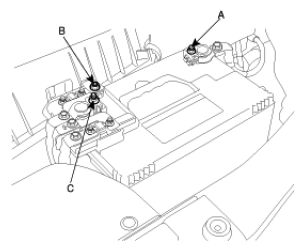

  36. Install the battery after installing the three nuts (A, B, C) in order.
    Fig 32: Identifying Nuts
    G06861521Courtesy of HYUNDAI MOTOR CO.
  37. Install the engine cover. (refer to ENGINE AND TRANSAXLE ASSEMBLY )
  38. Refill the automatic transaxle fluid. (refer to INSPECTION AND ADJUSTMENT )
  39. Refill the power steering fluid. (refer to POWER STEERING GEAR BOX )
  40. When replacing the automatic transaxle assembly, after initializing the TCU, perform N position learning and initial learning. (refer to <-- Troubleshooting's -->'HOW TO PERFORM N POSITION LEARNING ' and 'HOW TO PERFORM INITIAL LEARNING ')
