Home
>>
Hyundai
>>
2011
>>
Veracruz GLS, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle Control System
>>
Specifications (F21)
>>
Specification Of Bolts
Specification Of Bolts

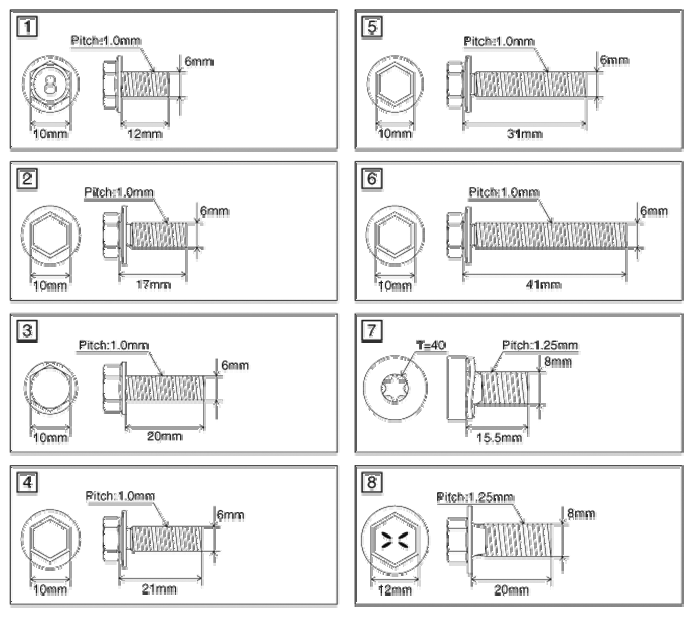

Fig 1: Bolts Specification Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
