IMS Connectors

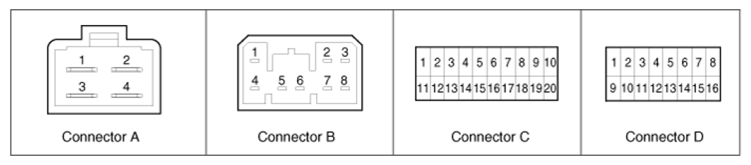

Fig 1: Identifying IMS Connector Terminals

Courtesy of HYUNDAI MOTOR CO.

Connector Pin Name

PINOUTS REFERENCE

No.	CONNECTOR A	CONNECTOR B	CONNECTOR C	CONNECTOR D
1	RECLINE MOTOR BACK	-	RECLINE FWD SENSOR	RECLINE BACK LIM SW
2	RECLINE MOTOR FWD	SLIDE MOTOR FWD	"R" POSITION	RECLINE FWD LIM SW
3	POWER GND	FRT HEIGHT MOTOR DOWN	FRT HEIGHT UP SENSOR	RR HEIGHT UP SW
4	POWER B+	-	FRT HEIGHT DOWN SENSOR	RR HEIGHT DOWN SW
5	-	RR HEIGHT MOTOR UP	"P" POSITION	SLIDE FWD LIM SENSOR
6	-	RR HEIGHT MOTOR DOWN	FR HEIGHT UP	SWSLIDE BACK LIM SW
7	-	SLIDE MOTOR BACK	SLIDE FWD SENSOR	SLIDE BACK SENSOR
8	-	FRT HEIGHT MOTOR UP	RR HEIGHT UP SENSOR	RECLINE BACK SENSOR
9	-	-	RR DEIGHT DOWN SENSOR	SENSOR GND
10	-	-	FR HEIGHT DOWN SW	SIGNAL GND
11	-	-	RECLINE BACK SW	-
12			RECLINE FWD SW	-
13	-	-	CAN-L BUS	-
14	-	-	CAN-H BUS	-
15	-	-	SLIDE BACK SW	-
16	-	-	ECU B+	-
17	-	-	IGN2	-
18	-	-	SLIDE FWD SW	-
19	-	-	LIMIT SW GND	-
20	-	-	SENSOR Vcc	-
