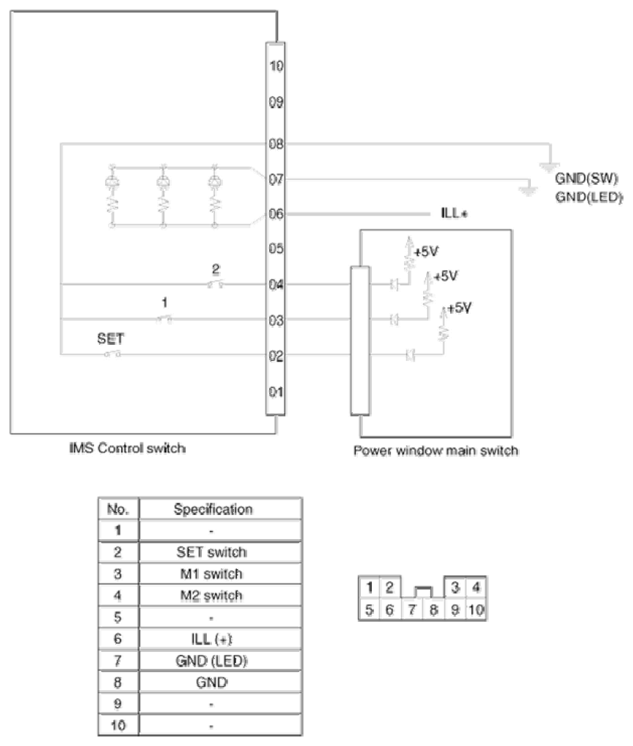

Home >> Hyundai >> 2011 >> Veracruz GLS, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Integrated Memory System >> IMS Control Switch >> Schematic Diagrams >> Circuit Diagram
