Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

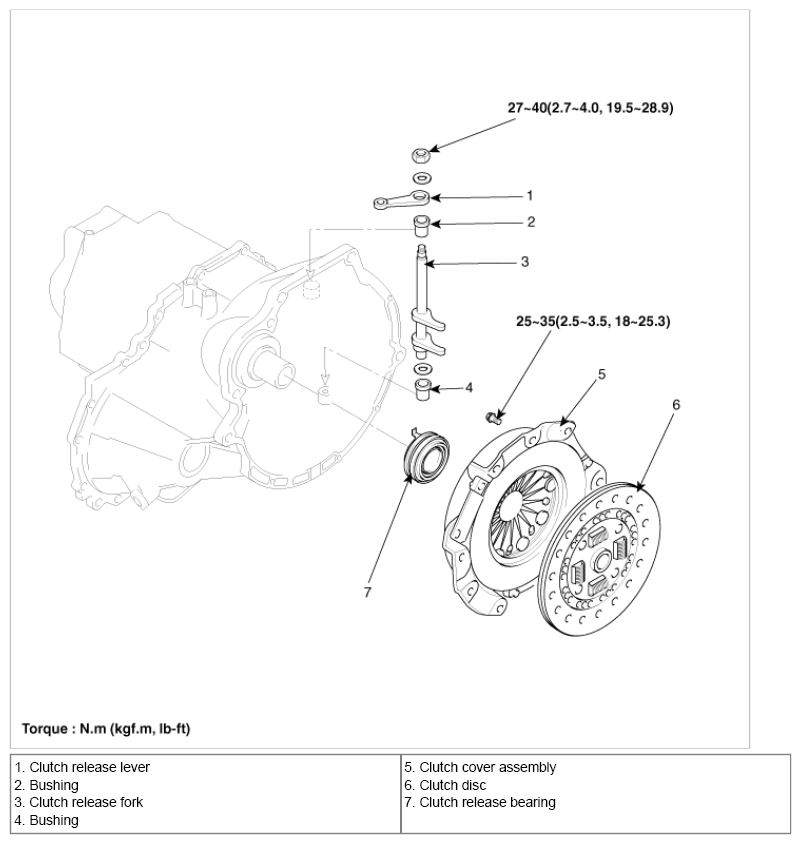

Fig 1: Clutch Cover And Disc Replacement Components With Torque Specifications
G06874922Courtesy of HYUNDAI MOTOR CO.
