Hyundai
>>
2011
>>
Tucson GL, Standard
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Auxiliary Emission Control Systems
>>
General Information (Emission Control System)
>>
Schematic Diagram
Schematic Diagram

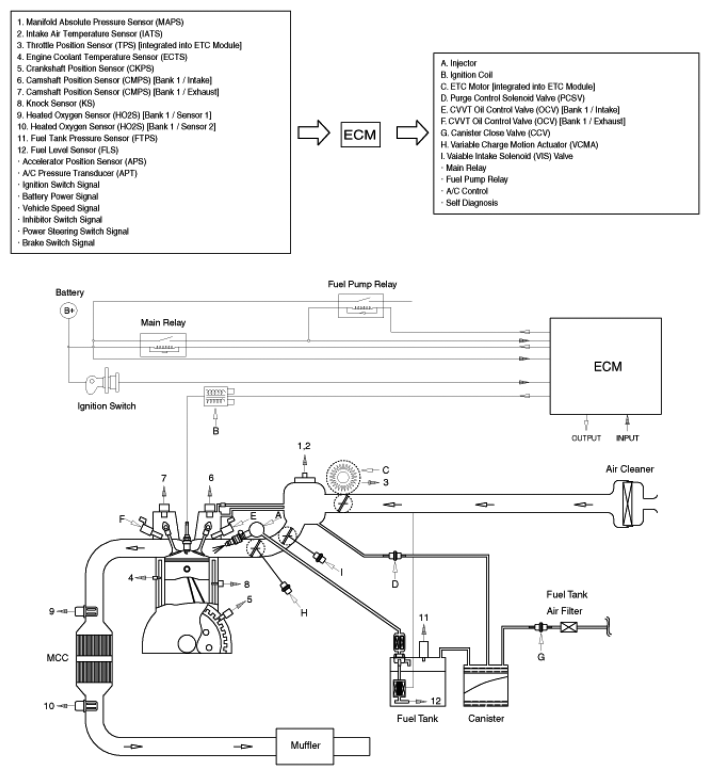

Fig 1: Emissions Control System Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
