Repair procedures: Replacement

NOTE:
  • When removing and installing the hood, an assistant is necessary.
  • Be careful not to damage the hood and body.
  • When removing the clips, use a clip remover.
  1. Remove the front bumper.

    (Refer to the FRONT BUMPER .)

  2. Loosen the mud guard mounting screws.
    Fig 1: Identifying Mud Guard Mounting Screws
    G06874616Courtesy of HYUNDAI MOTOR CO.
  3. After loosening the mounting screws and clips, then remove the side sill garnish (A).
    Fig 2: Identifying Side Sill Garnish
    G06874617Courtesy of HYUNDAI MOTOR CO.
  4. After loosening the mounting screws, then remove the front bumper side mounting bracket (A).
    Fig 3: Identifying Front Bumper Side Mounting Bracket
    G06874618Courtesy of HYUNDAI MOTOR CO.
  5. Using a screwdriver, remove the fender side cover (B).
  6. After loosening the mounting bolts, then remove the fender (A).

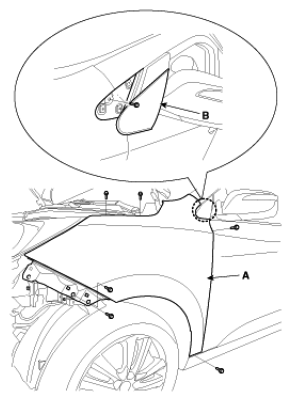

    Fig 4: Identifying Fender Side Cover And Fender
    G06874619Courtesy of HYUNDAI MOTOR CO.
  7. Installation is the reverse of removal
