Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio System
>>
Troubleshooting
>>
Chart 7
Chart 7

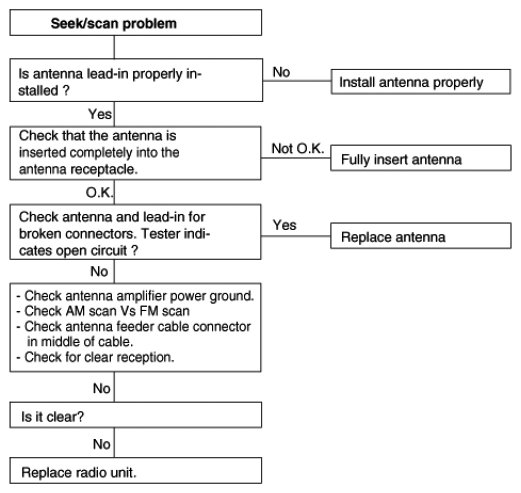

Fig 1: Troubleshooting Flow Chart 7
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
