Chart 4

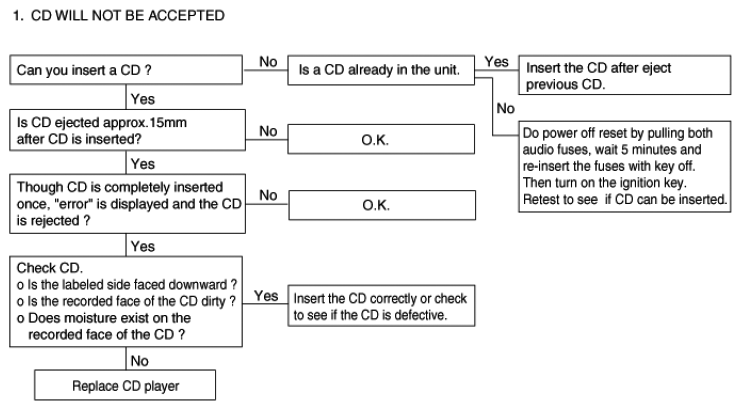

Fig 1: Troubleshooting Flow Chart 4 (1 Of 4)
G06873513Courtesy of HYUNDAI MOTOR CO.

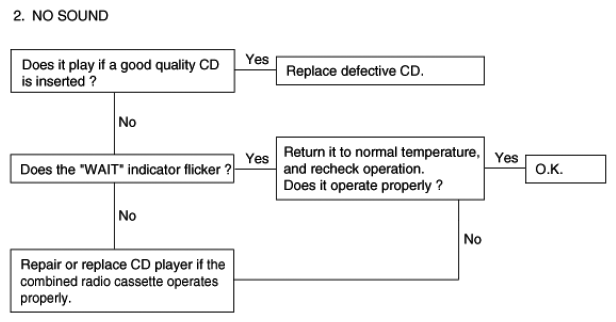

Fig 2: Troubleshooting Flow Chart 4 (2 Of 4)
G06873514Courtesy of HYUNDAI MOTOR CO.

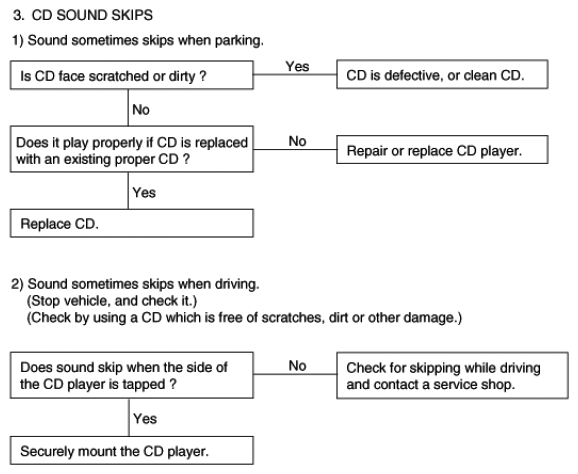

Fig 3: Troubleshooting Flow Chart 4 (3 Of 4)
G06873515Courtesy of HYUNDAI MOTOR CO.

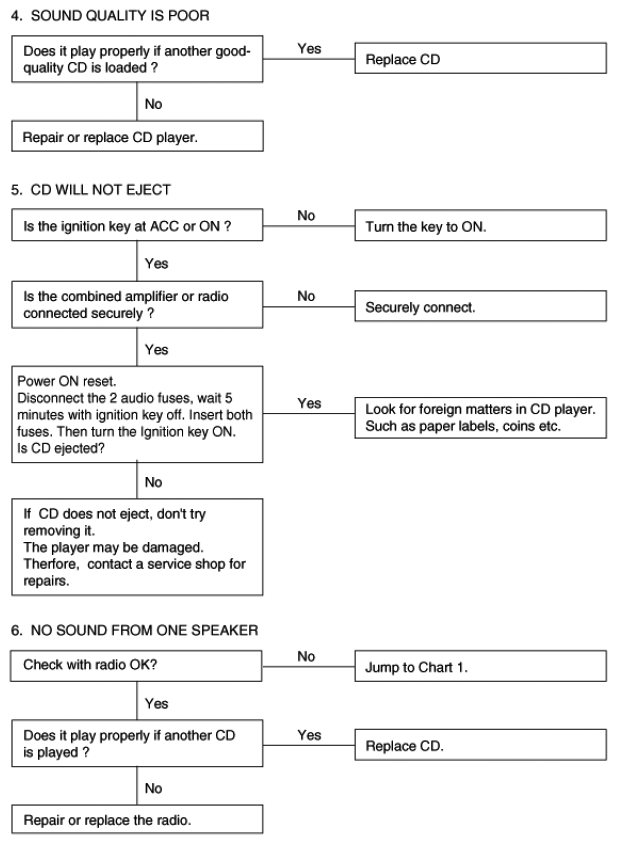

Fig 4: Troubleshooting Flow Chart 4 (4 Of 4)
G06873516Courtesy of HYUNDAI MOTOR CO.
