Chart 1

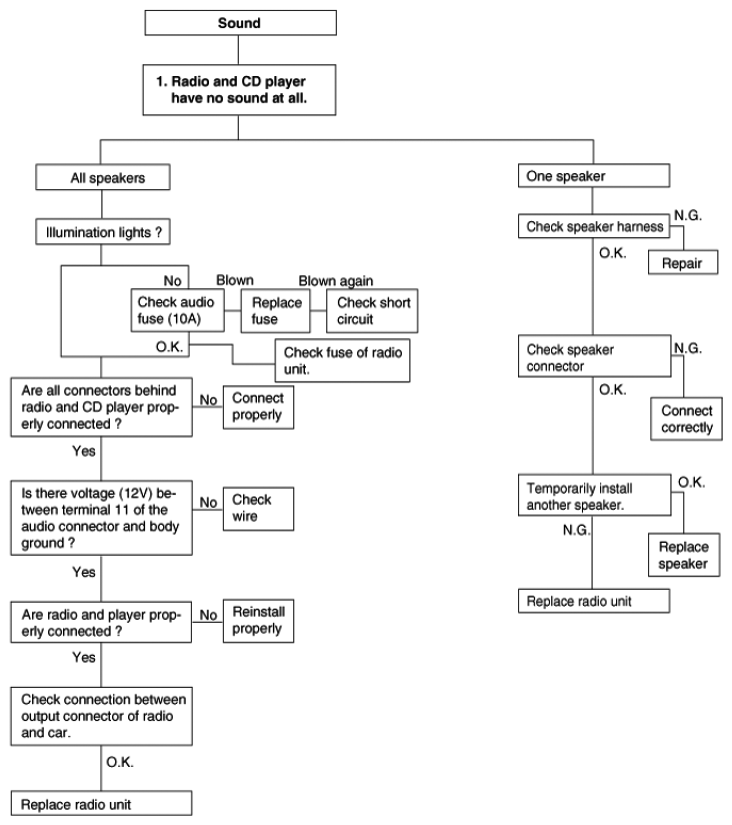

Fig 1: Troubleshooting Flow Chart 1 (1 Of 4)
G06873507Courtesy of HYUNDAI MOTOR CO.

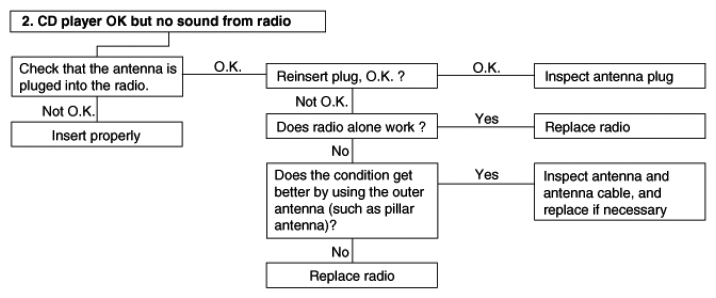

Fig 2: Troubleshooting Flow Chart 1 (2 Of 4)
G06873508Courtesy of HYUNDAI MOTOR CO.

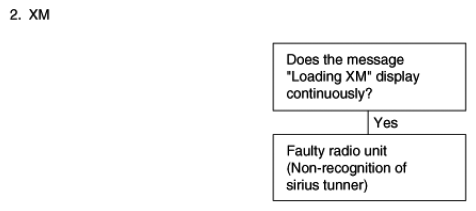

Fig 3: Troubleshooting Flow Chart 1 (3 Of 4)
G06873509Courtesy of HYUNDAI MOTOR CO.

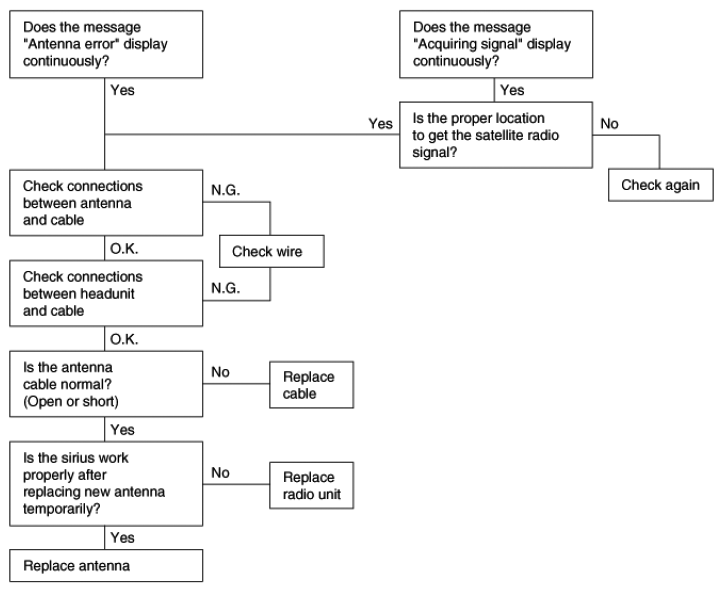

Fig 4: Troubleshooting Flow Chart 1 (4 Of 4)
G06873510Courtesy of HYUNDAI MOTOR CO.
