Circuit Diagram
Circuit Diagram

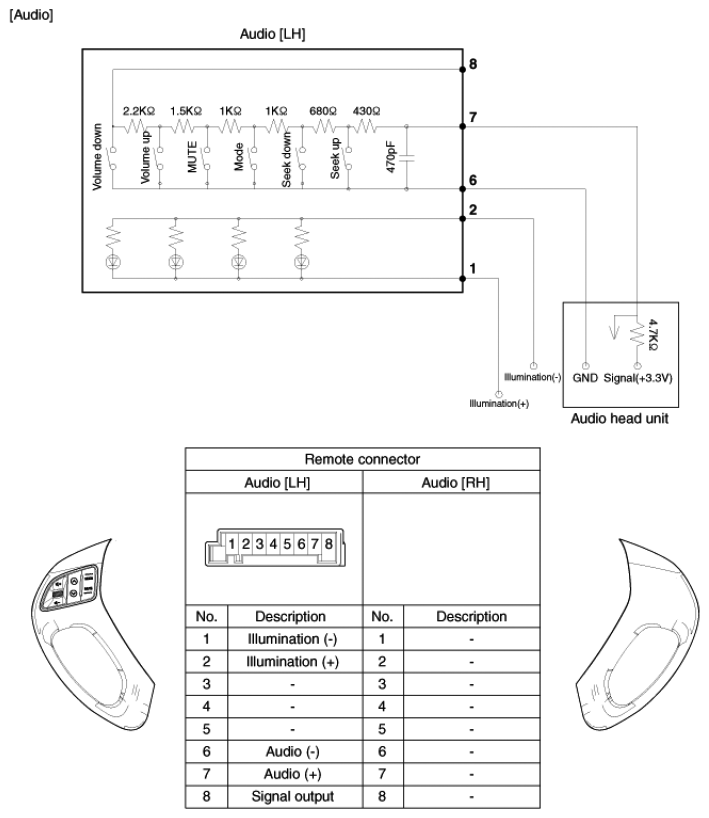

Fig 1: Audio Remote Control Circuit Diagram (Audio)
Courtesy of HYUNDAI MOTOR CO.

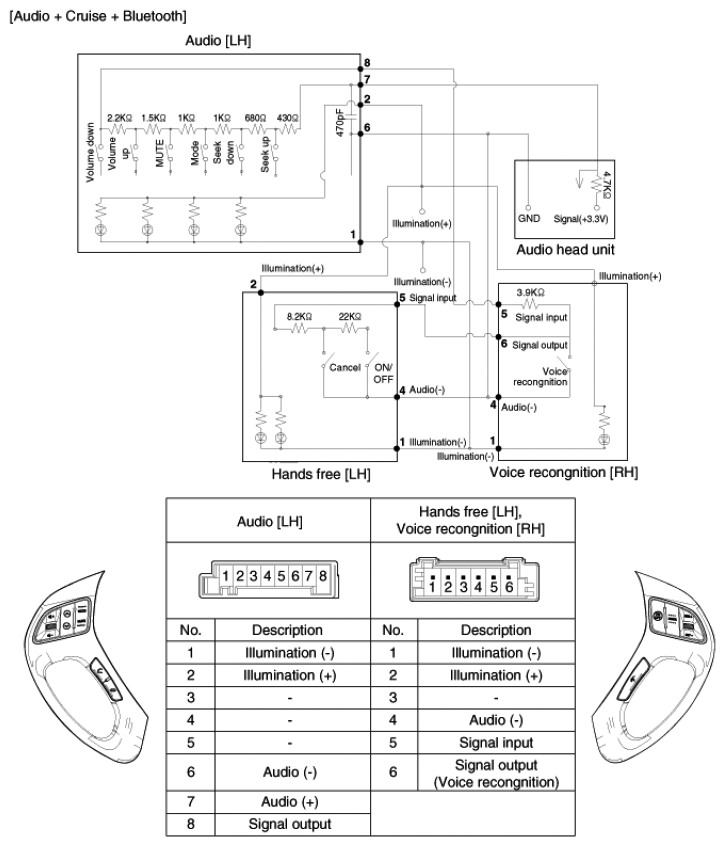

Fig 2: Audio Remote Control Circuit Diagram (Audio + Cruise + Bluetooth)
Courtesy of HYUNDAI MOTOR CO.

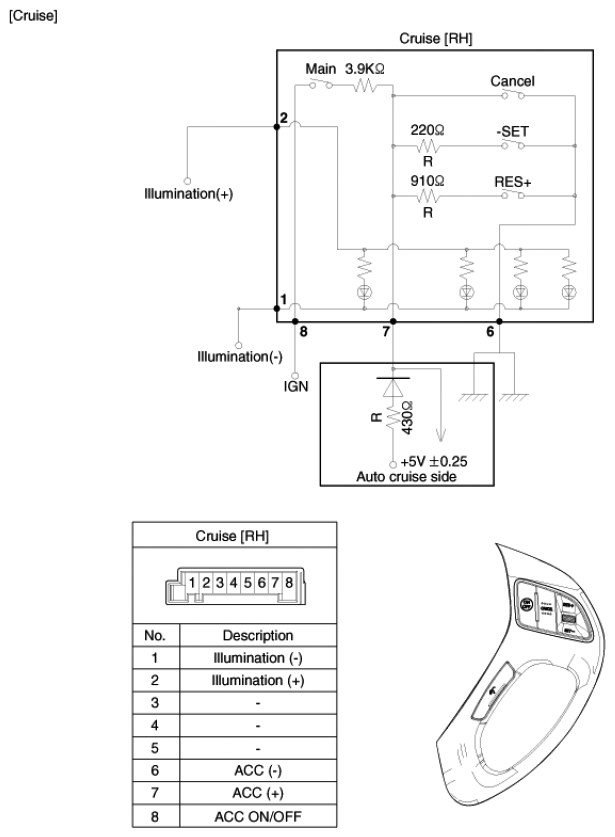

Fig 3: Audio Remote Control Circuit Diagram (Cruise)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
