Repair Procedures: Removal

Air cleaner assembly and air duct.
(Refer to "INTAKE AND EXHAUST SYSTEM " )
Remove the Hybrid Power Control Unit (HPCU) assembly.
(Refer to "HYBRID CONTROL SYSTEM " )
Remove the under cover (A).
Tightening torque:

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

Fig 1: Identifying Under Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the ATF warmer.
(Refer to "AUTOMATIC TRANSAXLE HYDRAULIC SYSTEM " )

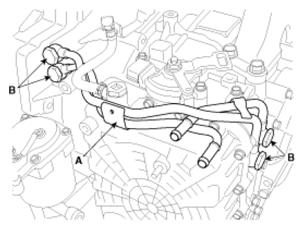

Remove the AT tube (A) after removing eye bolt (B).
Tightening torque:

42 ~ 48 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 31.4 lb-ft)

Fig 2: Identifying AT Tube And Eye Bolt
Courtesy of HYUNDAI MOTOR CO.
Replace new gasket and the plug after draining the automatic transaxle fluid by removing the drain plug. (Refer to "AUTOMATIC TRANSAXLE HYDRAULIC SYSTEM " )
Remove the valve body cover (A) and breather hose clip (B).
Tightening torque:

(A) 13.8 ~ 15.7 N.m (1.4 ~ 1.6 kgf.m, 10.1 ~ 11.6 lb-ft)

Fig 3: Identifying Valve Body Cover And Breather Hose Clip
Courtesy of HYUNDAI MOTOR CO.
Disconnect the oil temperature sensor connector (A).

Fig 4: Identifying Oil Temperature Sensor Connector
Courtesy of HYUNDAI MOTOR CO.

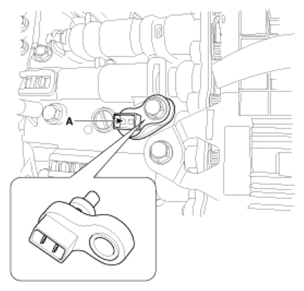

Remove the oil temperature sensor (A) after removing a bolt.
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

CAUTION: Be careful not to damage the harness lock connector.

Fig 5: Identifying Oil Temperature Sensor
Courtesy of HYUNDAI MOTOR CO.
