System calibration

WARNING: This page is about a different car, the 2011 Hyundai Genesis. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: This menu is applied only if vehicle has a Steel suspension

Select "AFLS" menu after selecting "GENESIS" of car lists.
Select "Sensor initializing-Non ECS" if vehicle has a Steel suspension

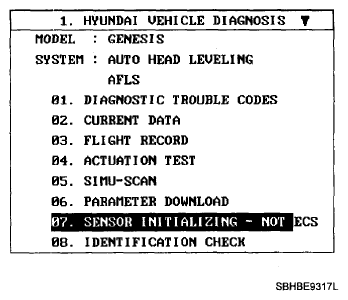

Fig 1: Scan Tool Display - Select "Sensor Initializing-Non ECS"
Courtesy of HYUNDAI MOTOR CO.
When "System calibration" is done, display below.

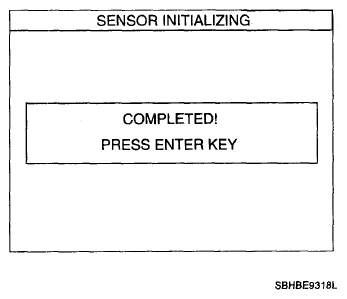

Fig 2: Scan Tool Display - "System Calibration" Is Done
Courtesy of HYUNDAI MOTOR CO.
When "System calibration" is not done, display below.

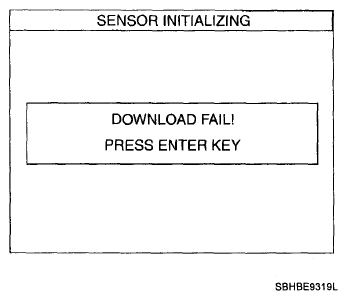

Fig 3: Scan Tool Display - "System Calibration" Is Not Done
Courtesy of HYUNDAI MOTOR CO.
