Download parameter

WARNING: This page is about a different car, the 2011 Hyundai Genesis. However, it is still accessible from the selected car via links, so may be relevant.

Select "AFLS" menu after selecting "GENESIS" of vehicle lists.

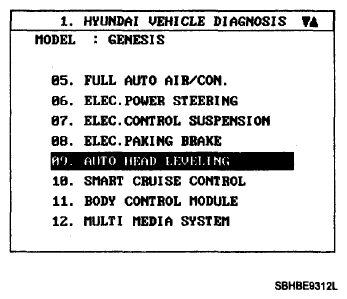

Fig 1: Scan Tool Display - Select "AFLS" Menu
Courtesy of HYUNDAI MOTOR CO.
Select "Parameter download" menu for define a characteristic of vehicle.

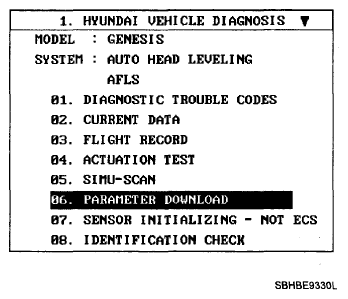

Fig 2: Scan Tool Display - Select "Parameter Download" (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

Fig 3: Scan Tool Display - Select "Parameter Download" (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Select "Air suspension not apply" if vehicle has a standard suspension

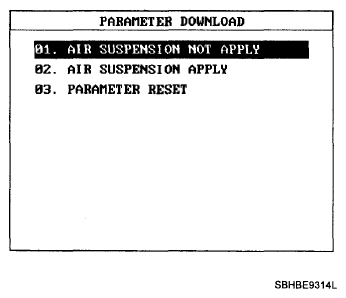

Fig 4: Scan Tool Display - Select "Air Suspension Not Apply"
Courtesy of HYUNDAI MOTOR CO.
Select "Air suspension apply" if vehicle has a Air suspension

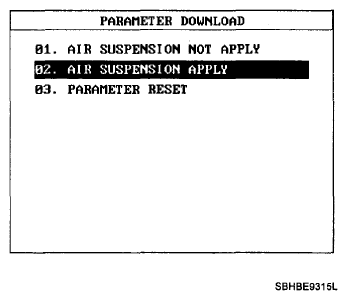

Fig 5: Scan Tool Display - Select "Air Suspension Apply"
Courtesy of HYUNDAI MOTOR CO.
When "Parameter download" is done, display below.

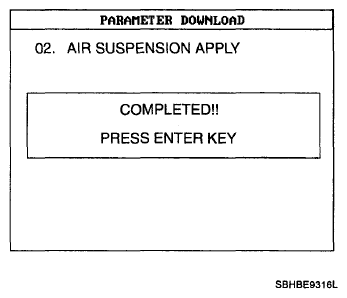

Fig 6: Scan Tool Display - "Parameter Download" Is Done
Courtesy of HYUNDAI MOTOR CO.
