Overhead Console Lamp: Inspection

WARNING: This page is about a different car, the 2011 Hyundai Genesis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.

Fig 1: Identifying Overhead Console Lamp Connector Terminals

Courtesy of HYUNDAI MOTOR CO.

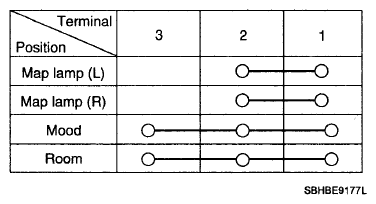

Fig 2: Overhead Console Lamp Connector Terminals Continuity Chart

Courtesy of HYUNDAI MOTOR CO.
