Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to the "CRASH PAD ")

  3. Remove the VESS unit (A) with bracket after loosening the mounting nuts (2EA) and disconnecting the connector.

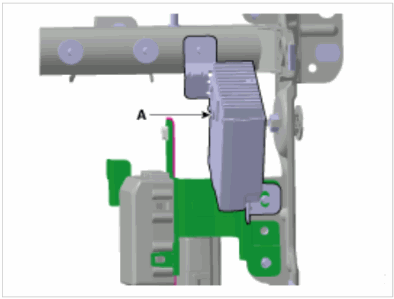

    Fig 1: Identifying VESS Unit
    G07319410Courtesy of HYUNDAI MOTOR CO.
