Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front wheel guard. (Refer to the "FRONT BUMPER ")
  3. Remove the VESS speaker (A) after removing the bolts and connector.

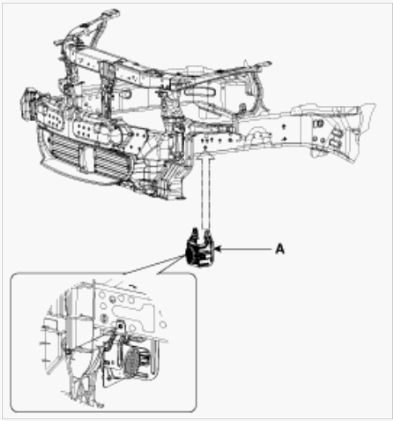

    Fig 1: Identifying VESS Speaker
    G07319412Courtesy of HYUNDAI MOTOR CO.
