Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the purge control solenoid valve connector (A).
  3. Disconnect the vapor hoses (B) from the purge control solenoid valve.
    Fig 1: Identifying Purge Control Solenoid Valve Connector And Vapor Hose
    G07744151Courtesy of HYUNDAI MOTOR CO.

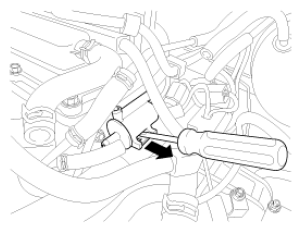

  4. Remove the valve from the bracket in the direction of the arrow.
    Fig 2: Removing Valve From Bracket
    G07744152Courtesy of HYUNDAI MOTOR CO.
