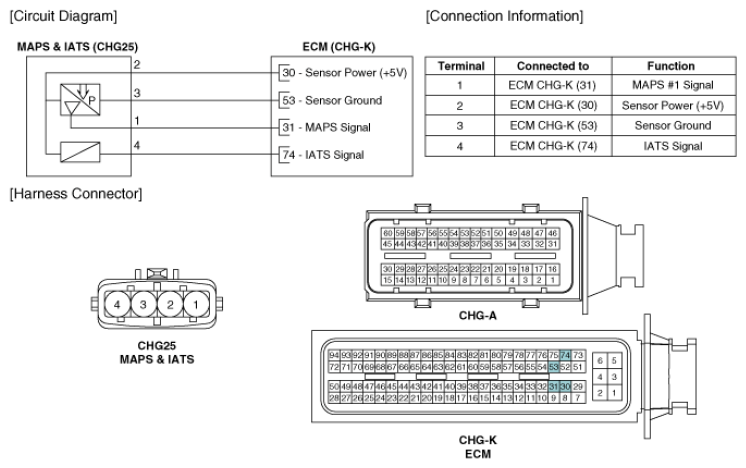

Home >> Hyundai >> 2011 >> Sonata Hybrid >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - HEV >> Intake Air Temperature Sensor (IATS) >> Schematic Diagrams >> Circuit Diagram
