Components And Components Location: Component

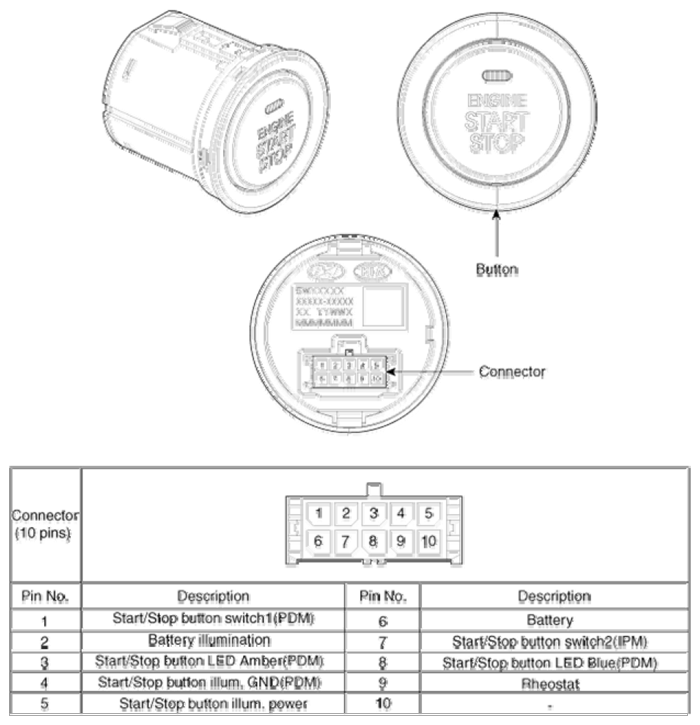

Fig 1: Identifying Start Stop Button Component

G07319385

Courtesy of HYUNDAI MOTOR CO.
