PDM Diagnosis With GDS: Notes

It will be able to diagnose defects of Smart key with GDS quickly.
GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
Select model and "Smart key system (Button start)" menu if you want to check PDM.

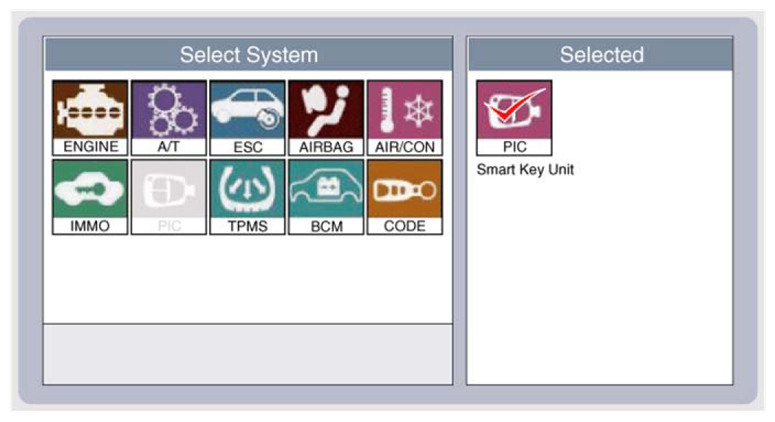

Fig 1: Selecting Model And Smart Key System (Button Start)
Courtesy of HYUNDAI MOTOR CO.
Select "PDM" in the menu.

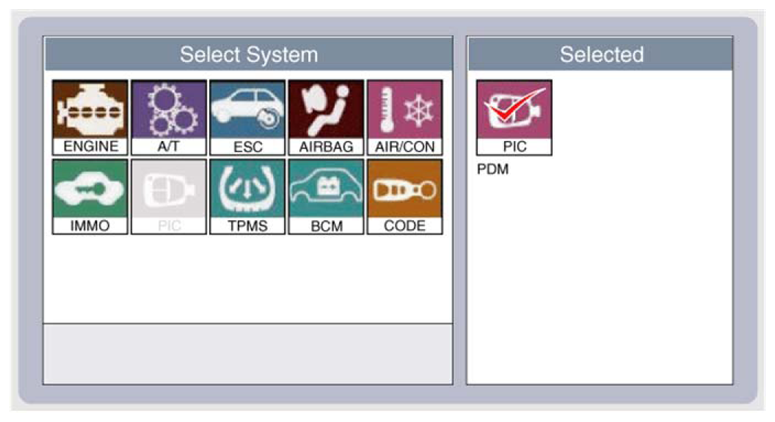

Fig 2: Selecting PDM In Menu
Courtesy of HYUNDAI MOTOR CO.
Select "Current Data", if you want to check current data of PDM.
It provides the input/output status of each module.

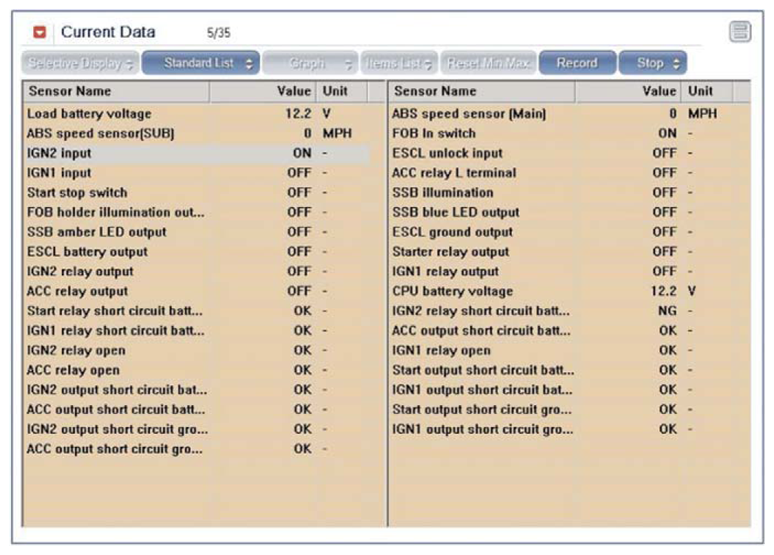

Fig 3: Screen Display - Current Data
Courtesy of HYUNDAI MOTOR CO.
If you want to check PDM data operation forcefully, select "Actuation test".

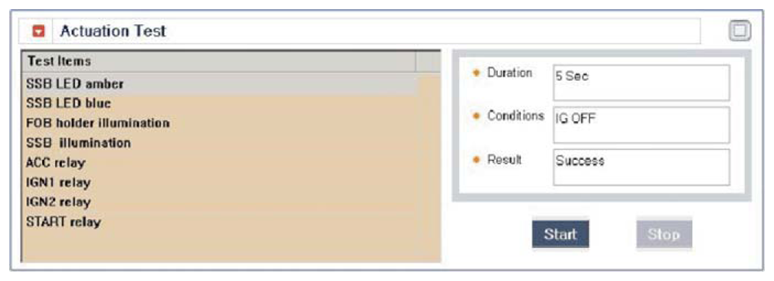

Fig 4: Screen Display - Actuation Test
