Components And Components Location: Component

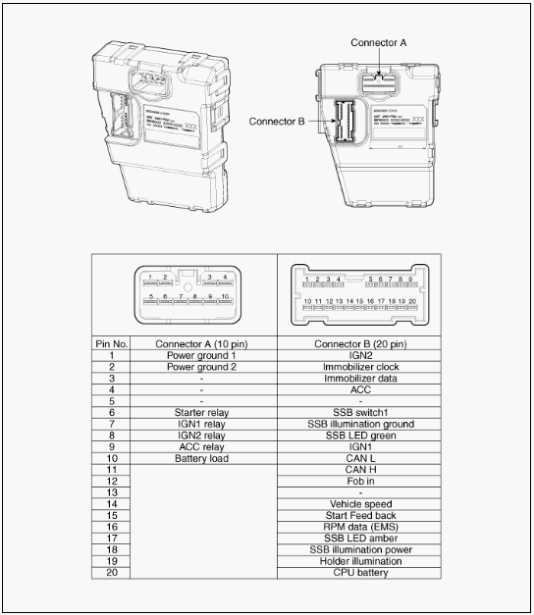

Fig 1: Identifying Power Distribution Module Connector Terminals

G07319393

Courtesy of HYUNDAI MOTOR CO.
