Components And Components Location: Components

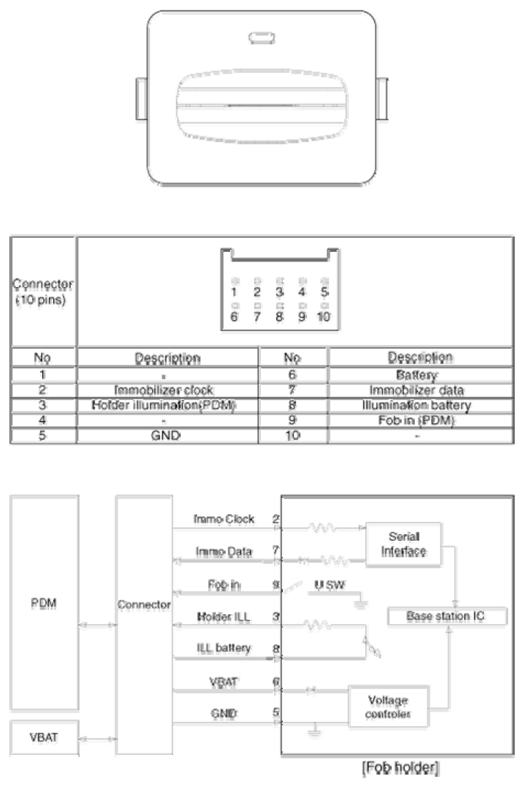

Fig 1: Fob Holder Circuit

G07319390

Courtesy of HYUNDAI MOTOR CO.
