Home >> Hyundai >> 2011 >> Sonata GLS, Standard >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Manual Transaxle Control System - Except HEV >> Shift Lever >> Components And Components Location >> Components

Components And Components Location: Components

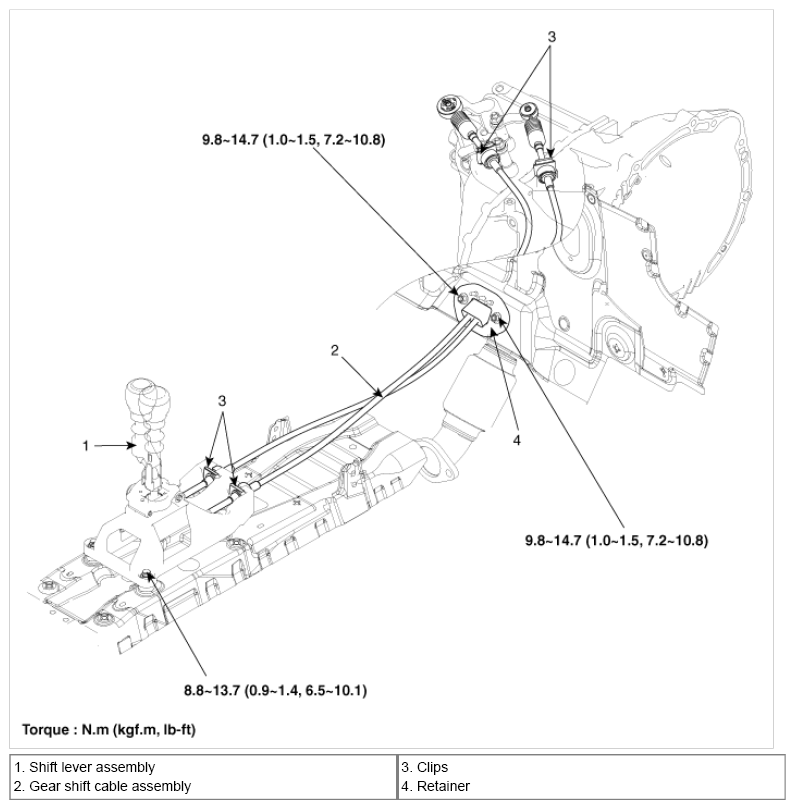

Fig 1: Identifying Shift Lever Assembly, Clips, Gear Shift Cable Assembly And Retainer

G07358780

Courtesy of HYUNDAI MOTOR CO.
