Hyundai
>>
2011
>>
Sonata GLS, Standard
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transaxle Control System - 2.4L - Except HEV
>>
Components And Components Location
>>
Components Location
Components Location

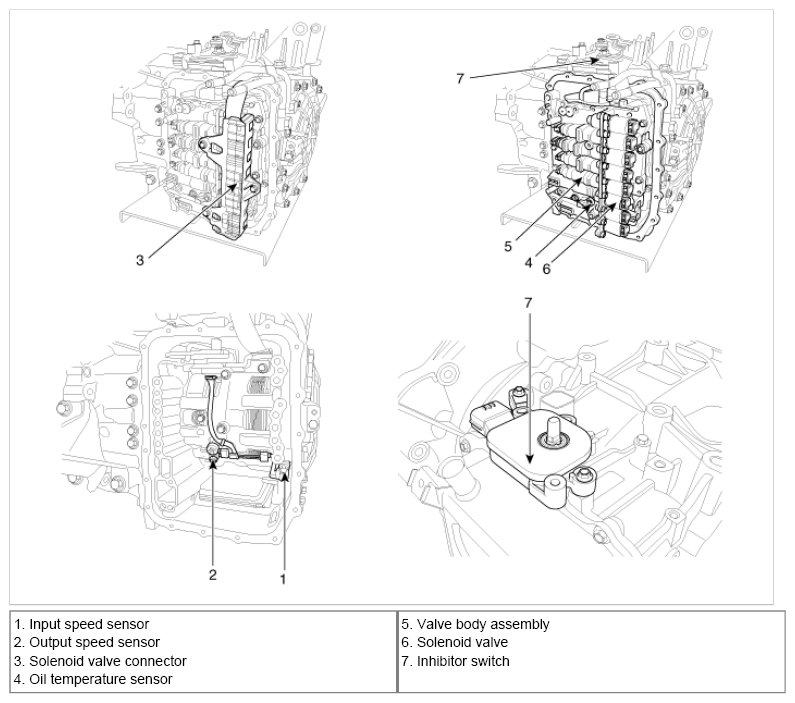

Fig 1: Identifying Automatic Transaxle Control System Components Location
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
