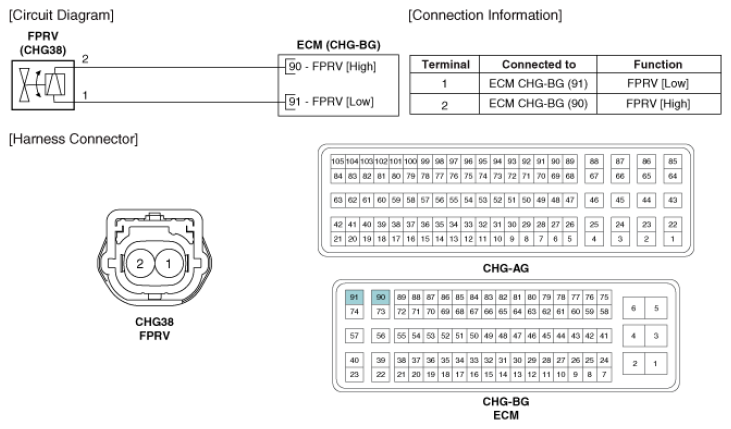

Home >> Hyundai >> 2011 >> Sonata GLS, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.4L - Except HEV >> Fuel Pressure Control Valve >> Schematic Diagrams
