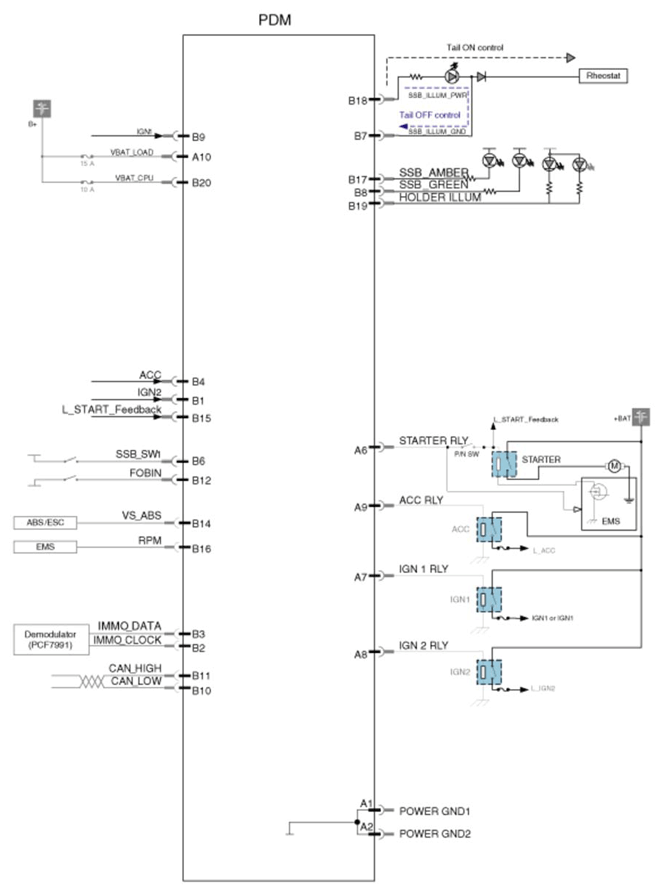

Home >> Hyundai >> 2011 >> Sonata GLS, Standard >> Repair and Diagnosis >> Electrical >> Starter >> Button Engine Start System - Except HEV >> PDM (Power Distribution Module) >> Schematic Diagrams >> System Circuit Diagram
