ESCL Open Status Check

  1. Select the "ESCL open status check" menu if you want to check ESCL open.

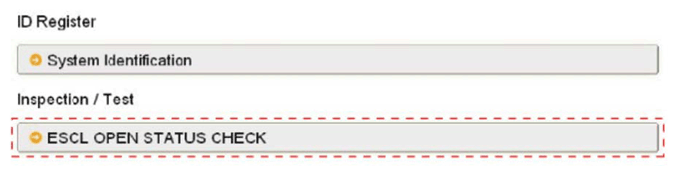

    Fig 1: Screen Display - ID Register
    G07364793Courtesy of HYUNDAI MOTOR CO.

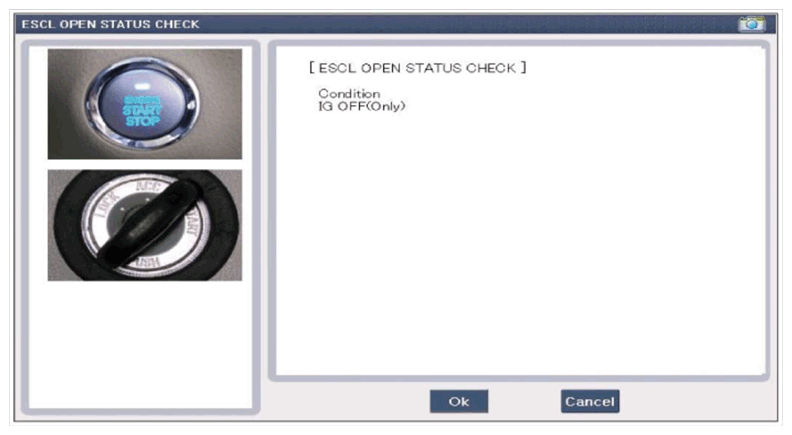

    Fig 2: Screen Display - ESCL Open Status Check
    G07364794Courtesy of HYUNDAI MOTOR CO.

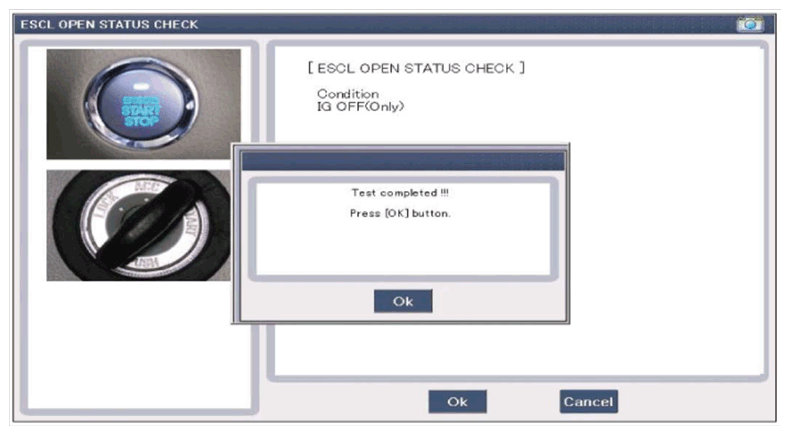

    Fig 3: Screen Display - Test Completed
    G07364795Courtesy of HYUNDAI MOTOR CO.
