Components Location

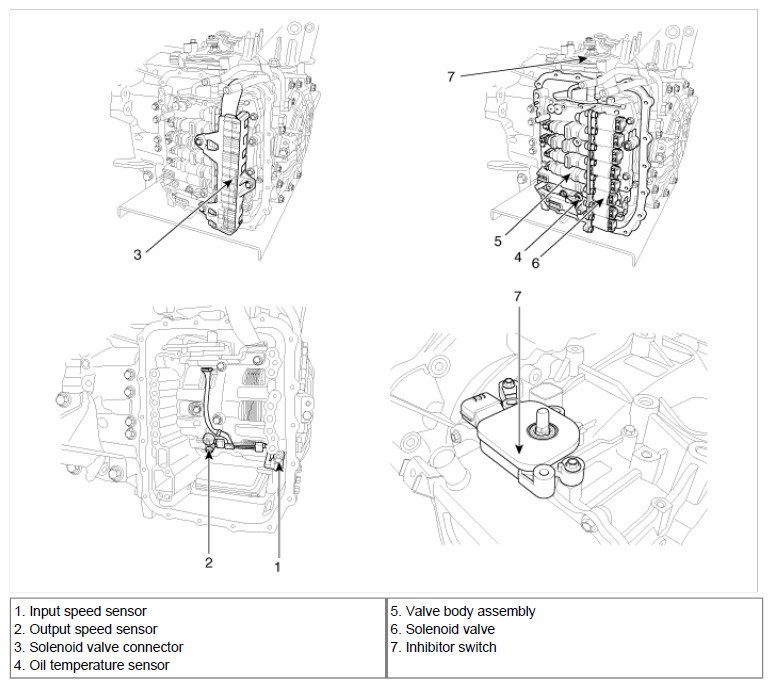

Fig 1: Identifying Automatic Transaxle Control System Components

G06844962

Courtesy of HYUNDAI MOTOR CO.
