Components (2)

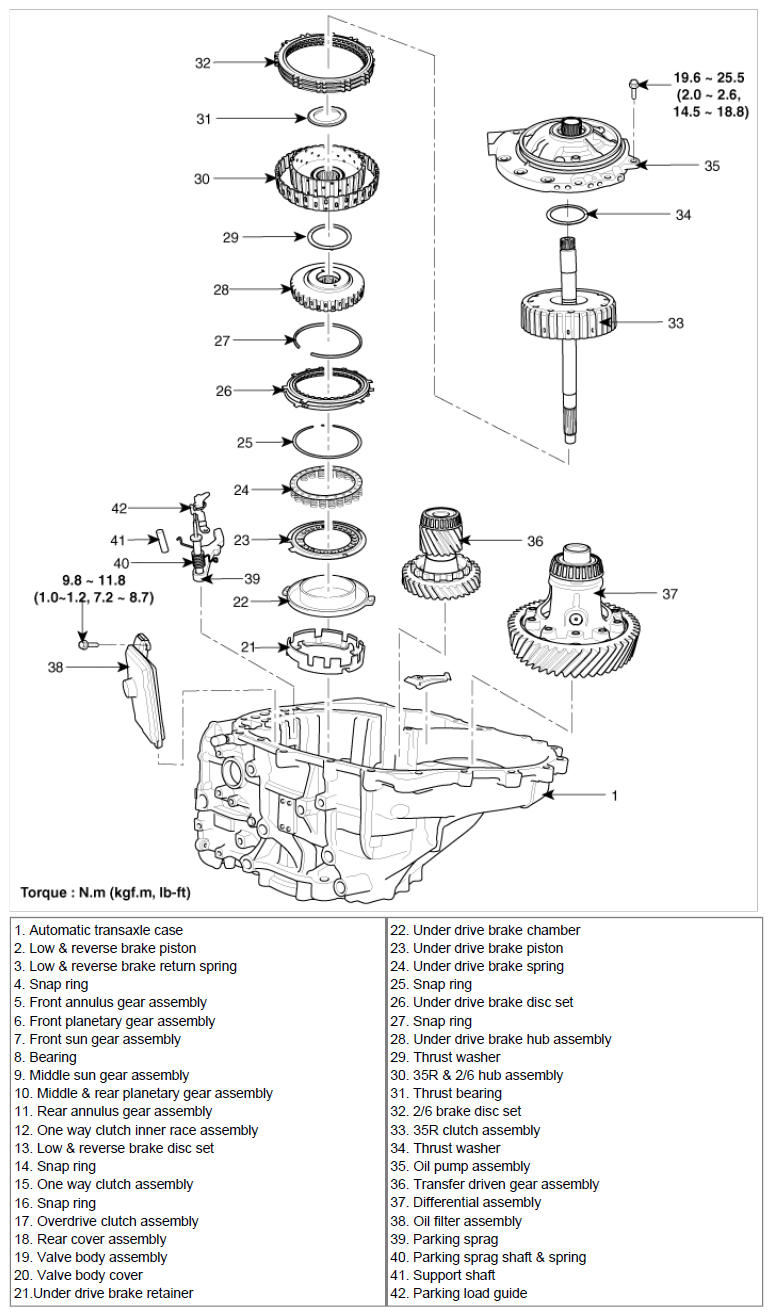

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications (2 Of 2)

G06848492

Courtesy of HYUNDAI MOTOR CO.
