Components and Components Location: Components

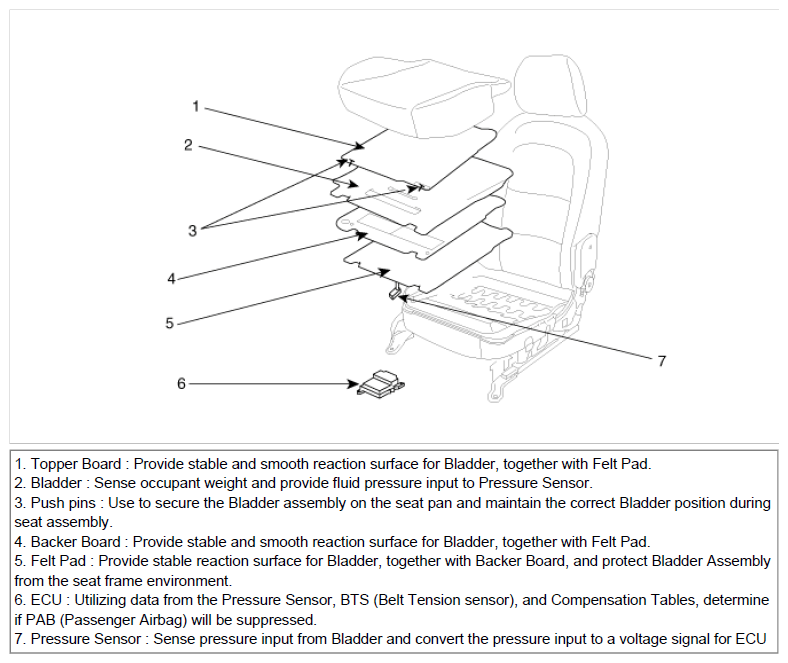

Fig 1: Identifying Occupant Classification Sensor (OCS) System Components

G06844362

Courtesy of HYUNDAI MOTOR CO.
