Repair procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Installation is the reverse of removal.

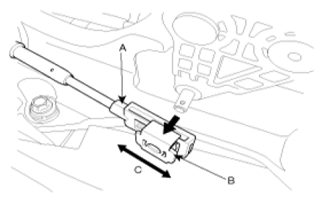

  2. Move the slide clip (B) of guide member (A) in the direction as shown in the illustration.
    NOTE: Adjust the slide clip fit into the select lever moving the slide clip in the direction.
    Fig 1: Moving Slide Clip Over Guide Member
    G06846968Courtesy of HYUNDAI MOTOR CO.
  3. Install the guide member (A) of the select cable (B).
    Fig 2: Identifying Guide Member And Select Cable
    G06846969Courtesy of HYUNDAI MOTOR CO.

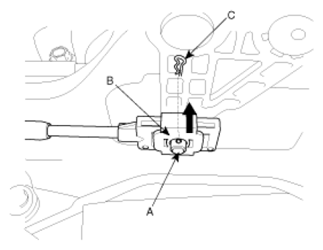

  4. Adjust the slide clip (B) to fit it into the select lever pin (A) and install the snap pin (C).
    NOTE: Insert the slide clip in the direction as shown in the illustration.
    Fig 3: Inserting Slide Clip And Snap Pin
    G06846970Courtesy of HYUNDAI MOTOR CO.
