Procedure of Variant Coding

  1. Install a PCM (ECM & TCM)/ESC normally.
  2. Connect the GDS to the data link connector located underneath the crash pad.
  3. Select vehicle name.
  4. Select ANTI-LOCK BRAKE SYSTEM.
  5. Select the variant coding.
  6. Ignition "ON" & Engine "OFF".
  7. Perform variant coding.

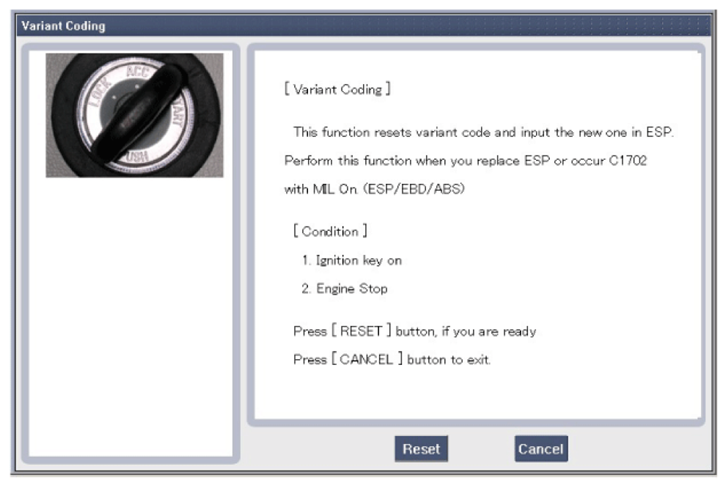

    Fig 1: Display - Variant Coding Screen
    G06844371Courtesy of HYUNDAI MOTOR CO.
  8. Ignition "OFF" and then ignition "ON".
  9. The variant coding is completed.
    CAUTION:
    • If the warning lamp (ESC, EBD, ABS) is illuminated, follow the "Variant coding" again.
