Repair procedures: Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Remove the junction box.
  3. Check for continuity between the terminals.
  4. There should be continuity between the No. 6 in the I/P-F and No. 14 terminal in the I/P-D when power and ground are connected to the No. 10 terminal in the I/P-E and No. 2 terminal in the I/P-J.
  5. There should be no continuity between the No. 6 terminal in the I/P-F and No. 14 terminal in the I/P-D when power is disconnected.

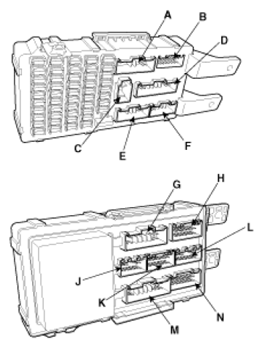

    Fig 1: Identifying Power Window Relay Terminals
    G06847802Courtesy of HYUNDAI MOTOR CO.
    Fig 2: Power Window Relay Terminal Connectivity Chart
    G06847803Courtesy of HYUNDAI MOTOR CO.
