Audio Assembly Replacement

  1. Remove the center facia panel.
  2. Loosen the screws.
  3. Disconnect the audio connector and antenna cable, then remove the audio assembly (A).

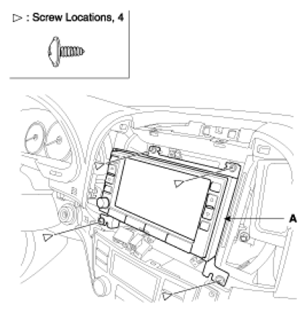

    Fig 1: Identifying Audio Assembly
    G06844552Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector are plugged in properly.
