Armrest Replacement

  1. Remove the console assembly.
  2. After remove the rear console cover (A).

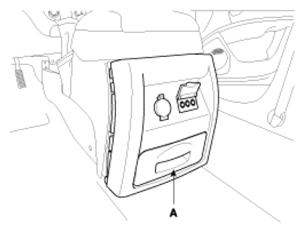

    Fig 1: Identifying Rear Console Cover
    G06844531Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the connector (A).

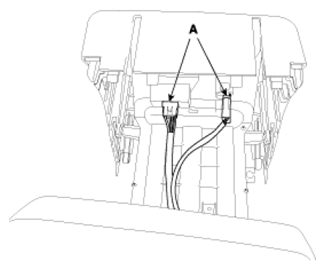

    Fig 2: Identifying Connector
    G06844532Courtesy of HYUNDAI MOTOR CO.
  4. After loosening the armrest mounting nuts, remove the armrest (A).

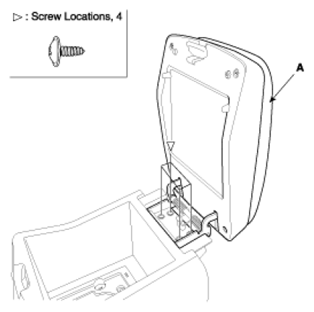

    Fig 3: Identifying Armrest
    G06844533Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
